Power Output Panel - Outlet Panel - Tap Box
Three-Phase 400A-600MCM
MTC 6003 OESHKvB
Supporting up to 400 Amps per panel and 600 MCM cable lugs on the wireway side, Roam's MTC® 6003 OESHKvB series ("v" = Voltage Code) of Power Output Panels provides a rugged and cost-effective exterior connection point for high-capacity external power loads.
Roam's 400A-600MCM Power Output Panels use E1016 (J-Series/16 Series) Female Cam-Lok* connectors supporting up to 400A, along with bus bar extensions that support up to two 600 MCM cable lugs per connector. Roam's 400A-600MCM panels are constructed from powder coated aluminum and are also built with a dedicated wire chase (wireway) in the back to allow safe cable entry (via conduit) from the bottom.
The standard in safety and outdoor reliability, Roam's Power Output Panels makes connecting building (line) power to external or internal loads fast, easy, and most importantly—safe.
Like the rest of Roam's Power Output Panels (also known as Outlet Panels, Docking Stations, or Tap Boxes), the MTC 6003 OESHKvB series offers a safe, secure power output connection point for external loads such as lighting, mobile equipment, booths, test load banks, or entertainment venue power. The MTC 6003 OESHKvB line is part of Roam's UL Listed (US & Canada) series of three-phase Power Output Panels. Roam uses genuine Cooper Crouse-Hinds Cam-Lok brand connectors. Similar compatible connectors are sometimes referred to as "Cam-Lock" connectors by their manufacturers, distributors, and/or users.
- Bottom conduit access via rear wireway
- Corrosion-resistant powder coating
- UV-resistant four color labels
- Built to NEMA 3R standard
- Internal and external grounding studs
- Five Female E1016 Cam-Lock connectors
- Three-phase power, at up to 400A
- Wireway side accepts up to 600MCM cable
- 240 VAC, 480 VAC, & 600 VAC rated panels
- Spot-welded aluminum construction
- Custom labels & configurations available
- Brown-Orange-Yellow connectors at 480VAC
MTC 6003 OESHK2B - 400A/240VAC
Three-Phase - Power Output Panel - Open/240VAC
MTC 6003 OESHK2B - 400A/240VAC
Three-Phase - Power Output Panel - Closed/240VAC
Connections
Roam's MTC 6003 OESHKvB 400 Amp-600MCM Power Output Panels accept either #2 to 2/0 or 2/0 to 4/0 cables via Cam-Lock plugs on the output cable side, and from #2 AWG to 600MCM cables on the internal wireway side. The wireway connection supports up to dual 600MCM cables (via bolted on lugs) on internal bus bars. Note that connectors are rotated by 90° from normal front facing orientation in this panel.
Voltages up to 600VAC
Roam offers the MTC 6003 OESHKvB Power Output Panel in models that support up to 240 VAC (120v, 208v, 230v, 240v)—MTC 6003 ESHK2B, up to 480 VAC (277v, 330v, 440v, 480v)—MTC 6003 OESHK4B-BOY, and up to 600 VAC (575v, 577v, 600v)—MTC 6003 OESHK6B. All of the 400A-600MCM panels are UL Listed and cUL Listed (Canada) at those voltage levels. Brown-Orange-Yellow color coding (for labels, Cam-Locks, & Cam-Lock spring caps) is normally used for most 480 VAC applications.

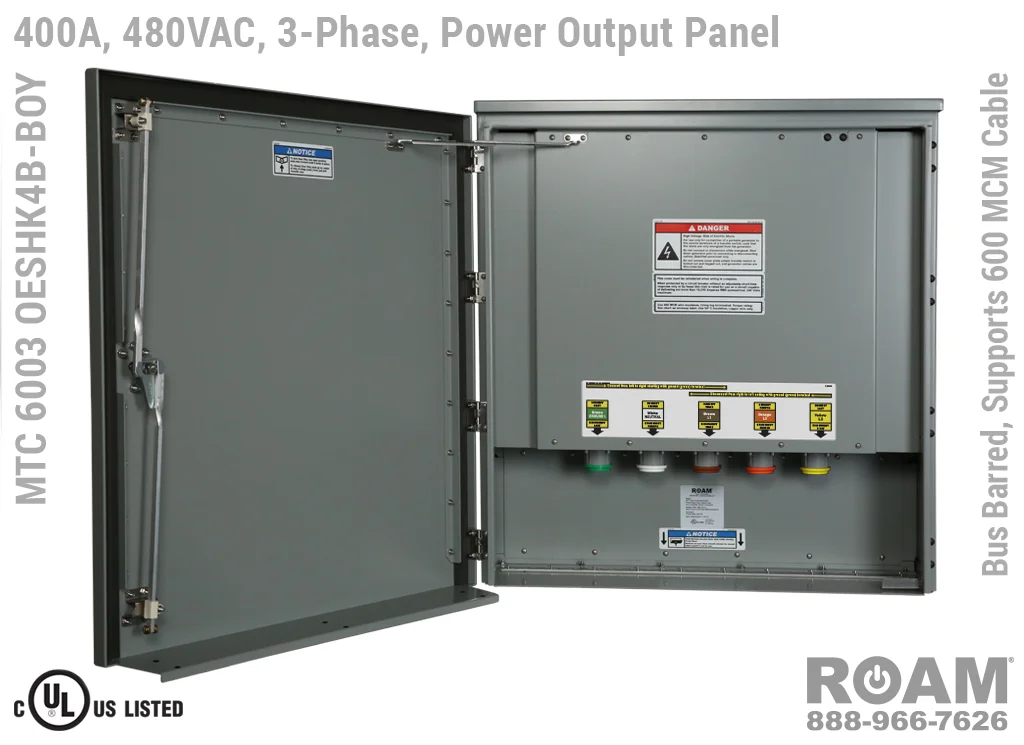

MTC 6003 OESHK4B-BOY - 400A/480VAC
Three-Phase - Power Output Panel - Open/480VAC

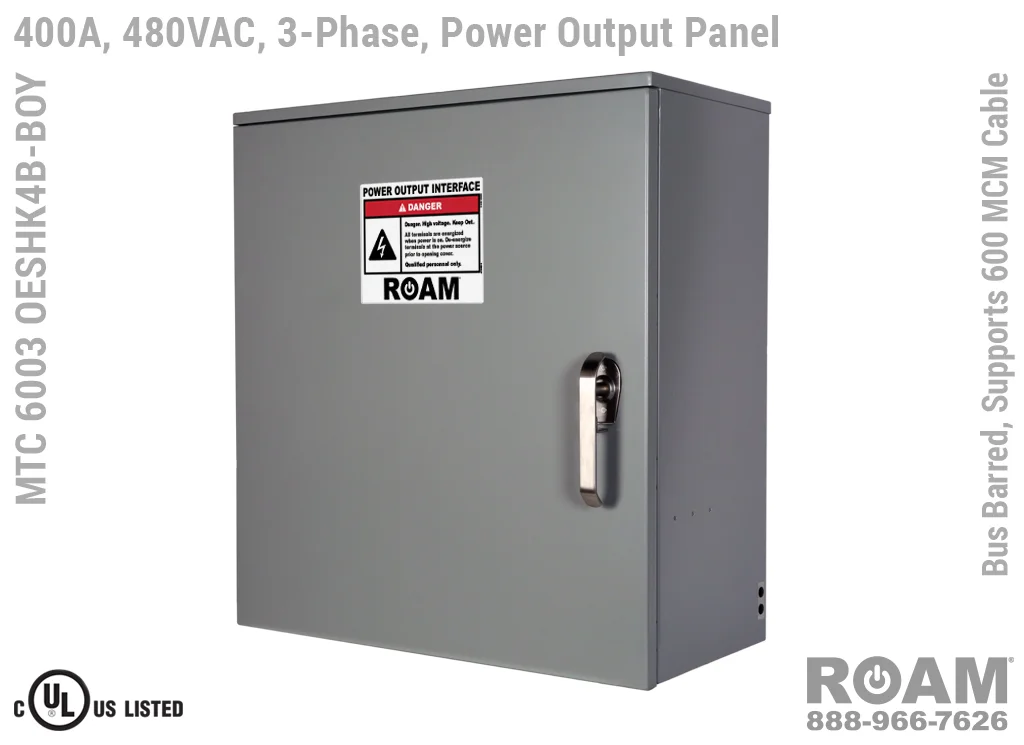

MTC 6003 OESHK4B-BOY - 400A/480VAC
Three-Phase Power Output Panel - ClosedK4B-BOY - 400A/480VAC
MTC 6003 OESHK6B - 400A/600VAC
Three-Phase - Power Output Panel - Open/600VAC

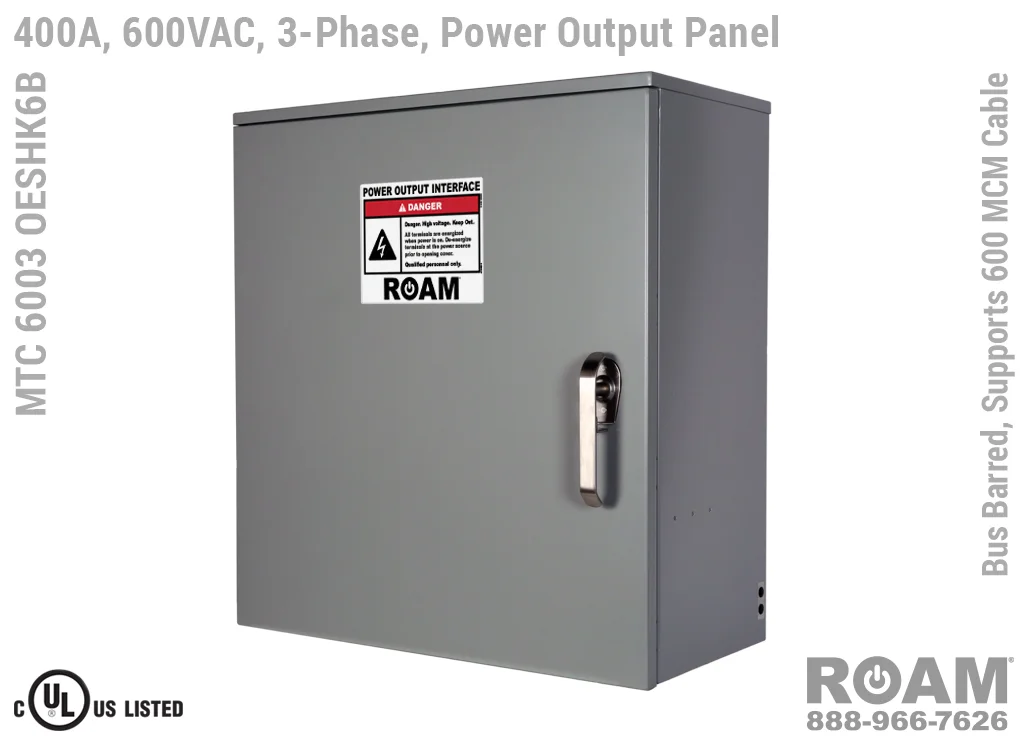

MTC 6003 OESHK6B - 400A/600VAC
Three-Phase - Power Output Panel - ClosedK6B - 400A/600VAC
Canadian Color Coding Available
Any Roam panels normally color coded (for Cam-Locks, Spring Caps, and Labels) as L1=Black, L2=Red, & L3=Blue, are also available in the typical Canadian color coding format of L1=Red, L2=Black, & L3=Blue. If you need to order a unit with the Canadian color scheme, just add a "-CAN" to the end of the Model Number. If the loads you are connecting the Power Output Panel to use the US color coding (L1 = Black, L2 = Red, L3 = Blue), then you may want the standard US color coding (so long as local electrical codes allow).
No Neutral Options Available
Roam's 400A-600MCM Power Output Panels (Boxes) can also be ordered with no neutral connection for site and generator configurations designed for just Ground, L1, L2, and L3 cables. The "No Neutral" versions of these panels are also UL Listed and cUL Listed (Canada). To order a panel without a neutral connector just add a "-NN" to the end of the Model Number. The "No Neutral" panels use only four Cam-Lock connectors.
MTC 6003 OESHK2B-NN - 400A/240VAC
Three-Phase - Power Output Panel No Neutral -Open/240VAC
MTC 6003 OESHK2B-NN - 400A/240VAC
Three-Phase - Power Output Panel No Neutral - ClosedK2B-NN - 400A/240VAC
MTC 6003 OESHK4B-NN-BOY - 400A/480VAC
Three-Phase - Power Output Panel No Neutral - Open/480VAC

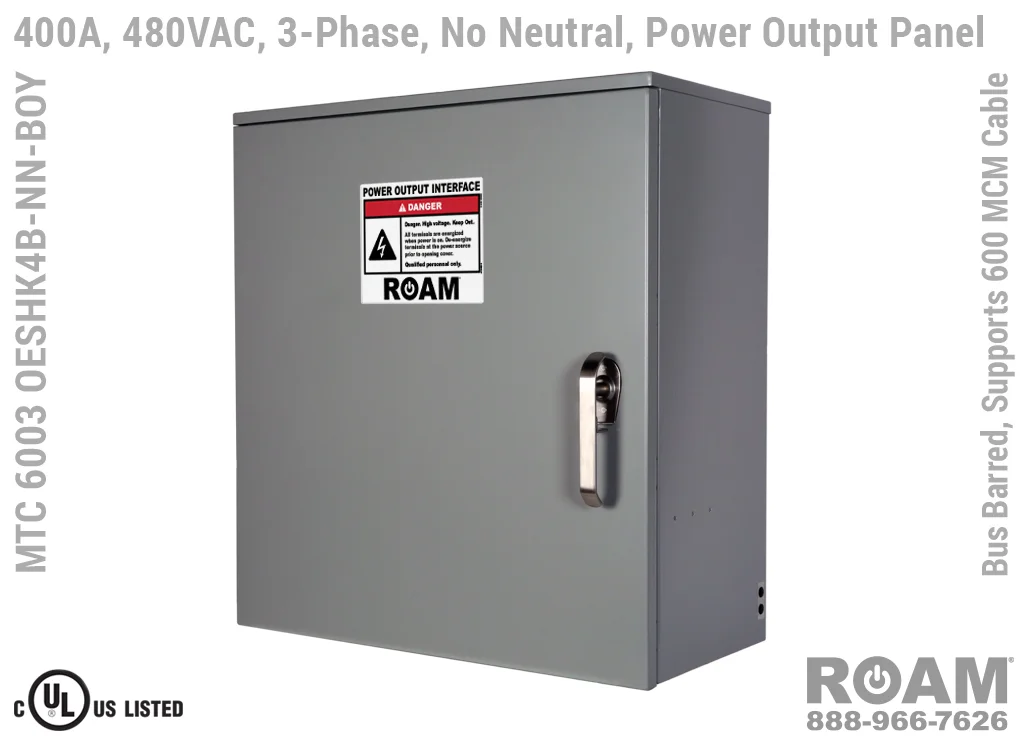

MTC 6003 OESHK4B-NN-BOY - 400A/480VAC
Three-Phase - Power Output Panel No Neutral - Closed/480VAC

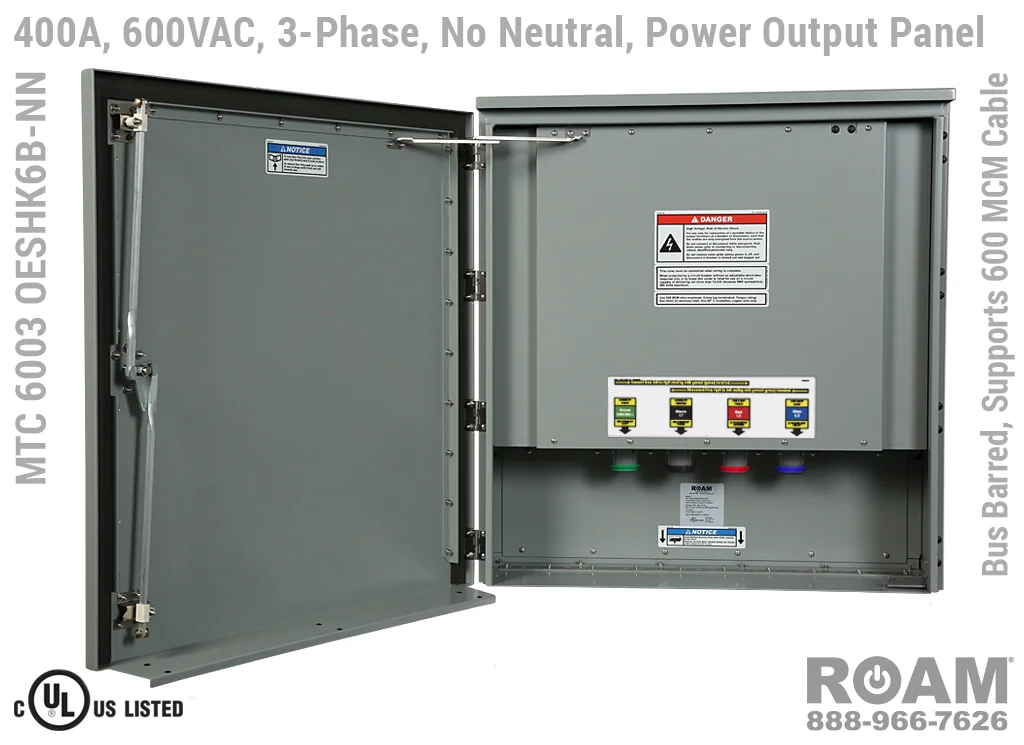

MTC 6003 OESHK6B-NN - 400A/600VAC
Three-Phase - Power Output Panel No Neutral -Open/600VAC

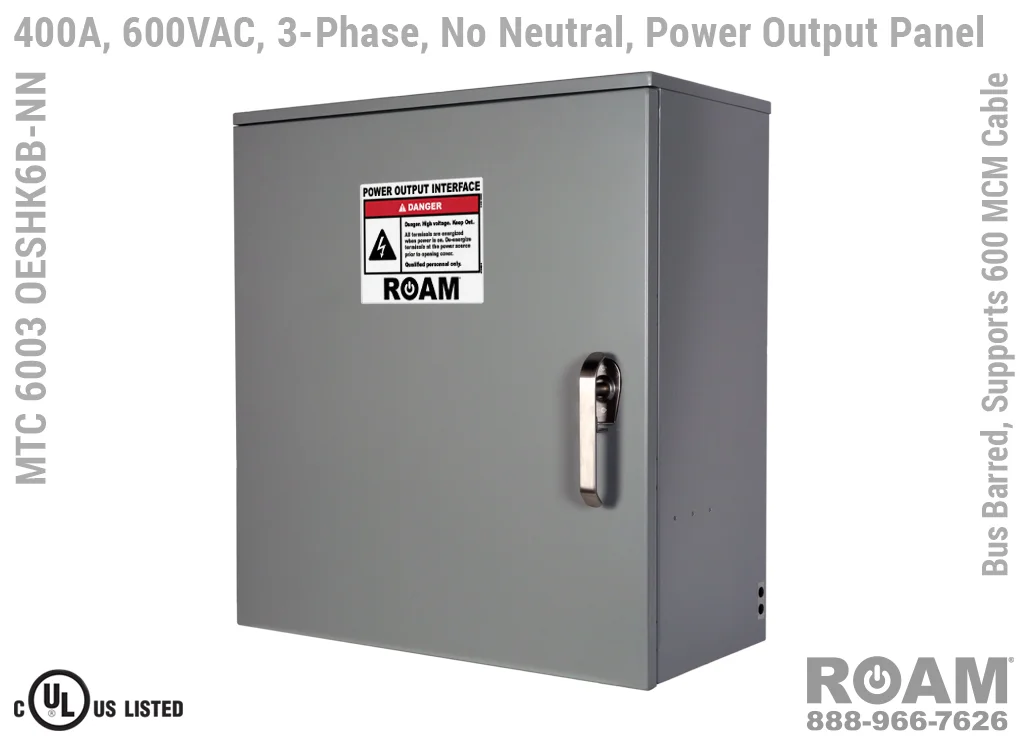

MTC 6003 OESHK6B-NN - 400A/480VAC
Three-Phase - Power Output Panel No Neutral - ClosedK6B-NN - 400A/480VAC
Model Numbers & Options
| Base Model Number | Up to 240VAC | Up to 480VAC | Up to 600VAC | No Neutral Connector |
|---|---|---|---|---|
| MTC 6003 OESHKvB | MTC 6003 OESHK2B | MTC 6003 OESHK4B-BOY | MTC 6003 OESHK6B | MTC 6003 OESHKvB-NN |
The "v" in the part number represents a code of either 2 (for up to 240 VAC panels), 4 (for up to 480 VAC panels), or 6 (for up to 600 VAC panels).
