Power Input Panel - Tap Box - Inlet Box
Three-Phase 400A-600MCM
MTC 6003 IESHKvB
Supporting up to 400 Amps per panel and 600 MCM cable lugs on the wireway side, Roam's MTC® 6003 IESHKvB series ("v" = Voltage Code) of Power Input Panels provides a rugged and cost-effective exterior connection point for temporary power input to trailers, buses, or temporary structures.
Roam's 400A-600MCM Power Input Panels use E1016 (J-Series/16 Series) Male Cam-Lok* brand connectors supporting up to 400A, along with bus bar extensions that support up to two 600 MCM cable lugs per connector. Roam's 400A-600MCM panels are constructed from powder coated aluminum and are also built with a dedicated wire chase (wireway) in the back to allow safe cable entry (via conduit) from the bottom.
The standard in safety and outdoor reliability, Roam's line of Power Input Panels (also known as Tap Boxes or Inlet Boxes) makes connecting a temporary power input to line power output from a building fast, easy, and most importantly—safe. The MTC 6003 IESHKvB line is part of Roam's UL Listed (US & Canada) series of three-phase Power Input Panels. Roam uses genuine Cooper Crouse-Hinds Cam-Lok* brand connectors. Similar compatible connectors are sometimes referred to as "Cam-Lock" connectors by their manufacturers, distributors, and/or users.
- Bottom conduit access via rear wireway
- Corrosion-resistant powder coating
- UV-resistant four color labels
- Built to NEMA 3R standard
- Internal and external grounding studs
- Five Male E1016 Cam-Lok connectors
- Three-phase power, at up to 400A
- Wireway side accepts up to 600MCM cable
- 240 VAC, 480 VAC, & 600 VAC rated panels
- Spot-welded aluminum construction
- Custom labels & configurations available
- Brown-Orange-Yellow connectors at 480VAC
MTC 6003 IESHK2B - 400A/240VAC
Three-Phase - Power Input Panel - Open/240VAC

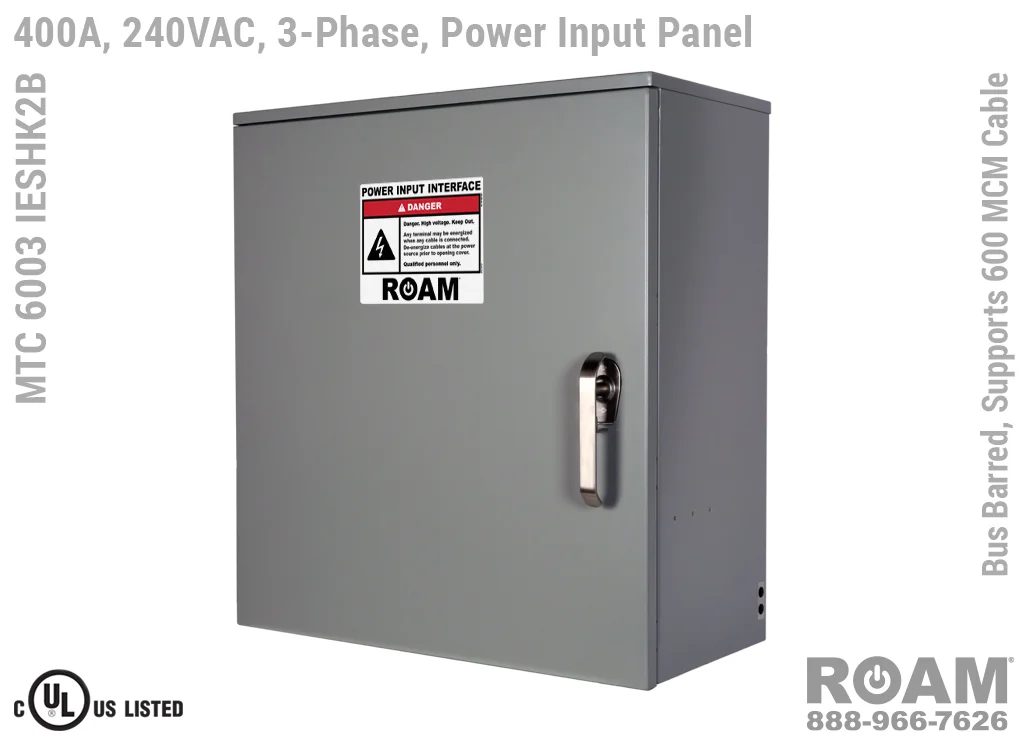

MTC 6003 IESHK2B - 400A/240VAC
Three-Phase - Power Input Panel - ClosedK2B - 400A/240VAC
Connections
Roam's MTC 6003 IESHKvB 400A-600MCM Power Input Boxes accept either #2 to 2/0 or 2/0 to 4/0 cables via Cam-Lock plugs on the generator cable side, and from #2 AWG to 600MCM cables on the internal wireway side. The wireway connection supports up to dual 600MCM cables (via bolted on lugs) on internal bus bars. Note that connectors are rotated by 90° from normal front facing orientation in this panel.
Voltages up to 600VAC
Roam offers the MTC 6003 IESHKvB Power Input Panel in models that support up to 240 VAC (120v, 208v, 230v, 240v)—MTC 6003 IESHK2B, up to 480 VAC (277v, 330v, 440v, 480v)—MTC 6003 IESHK4B-BOY, and up to 600 VAC (575v, 577v, 600v)—MTC 6003 IESHK6B. All of the 400A-600MCM panels are UL Listed and cUL Listed (Canada) at those voltage levels. Brown-Orange-Yellow color coding (for labels, Cam-Locks, & Cam-Lock spring caps) is normally used for most 480 VAC applications.

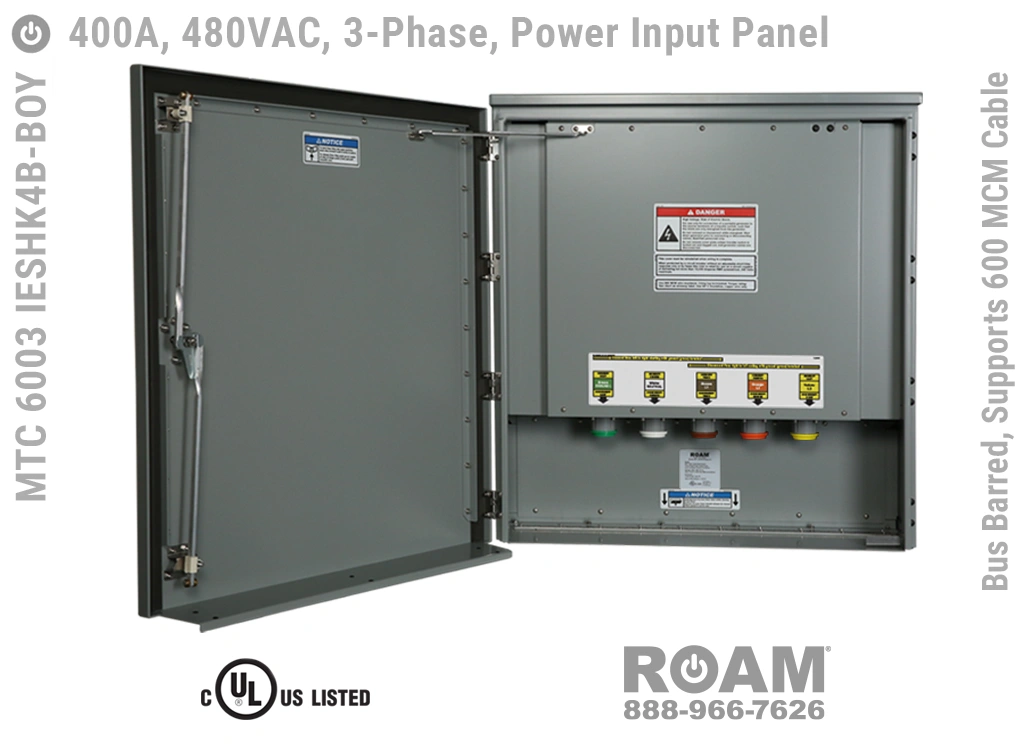

MTC 6003 IESHK4B-BOY - 400A/480VAC
Three-Phase - Power Input Panel - Open/480VAC

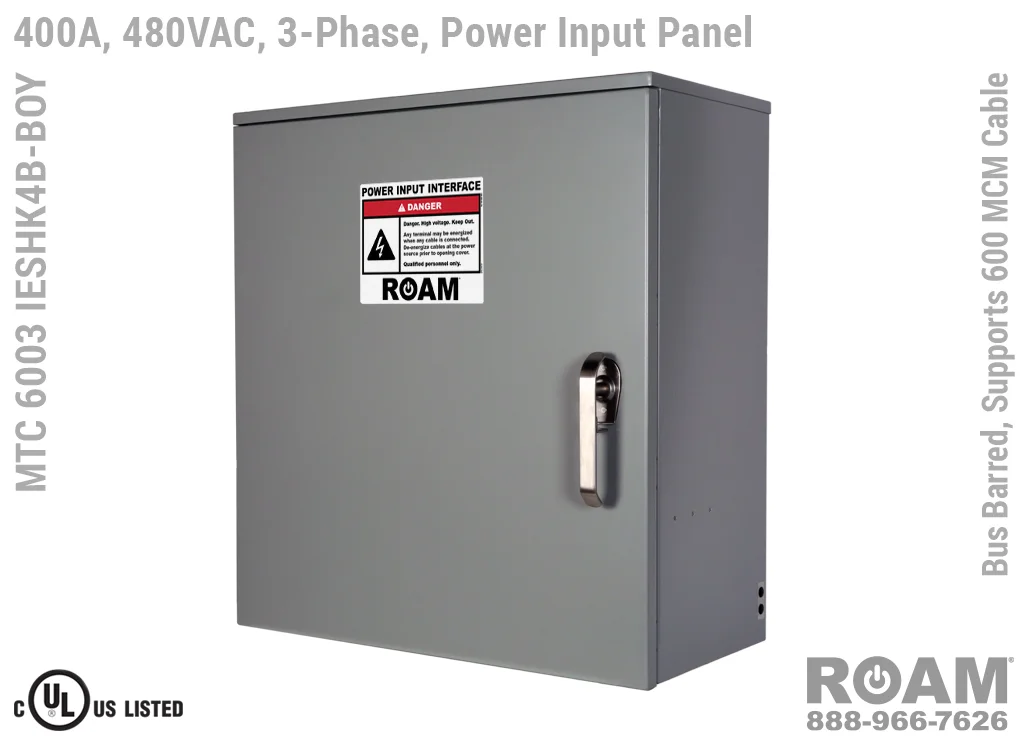

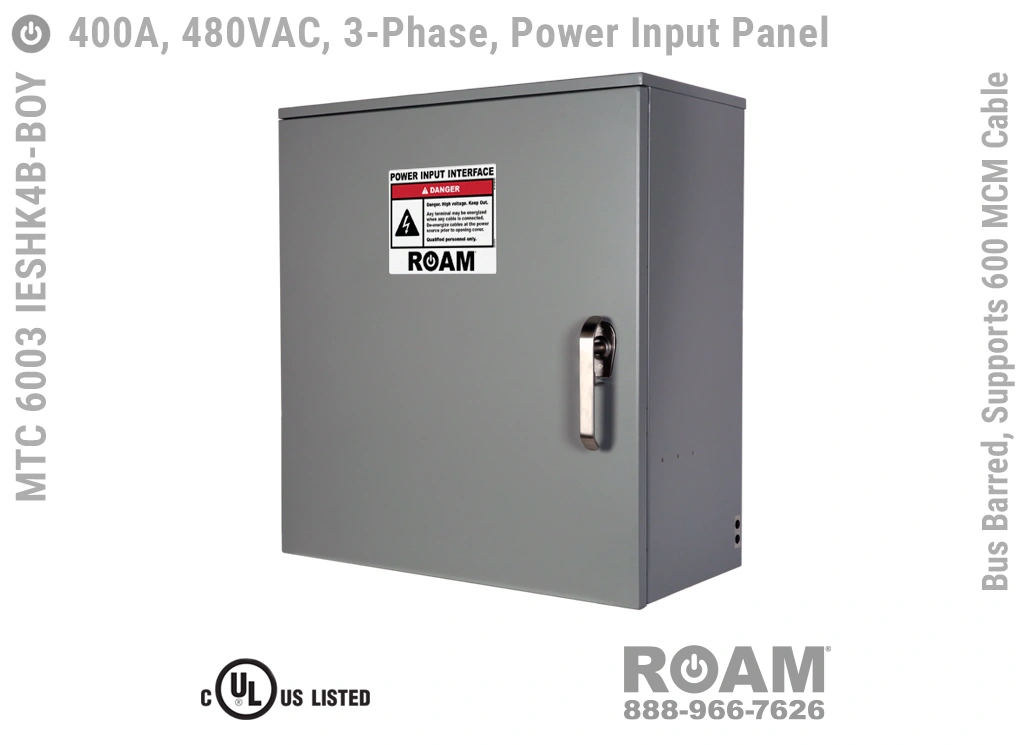

MTC 6003 IESHK4B-BOY - 400A/480VAC
Three-Phase - Power Input Panel - Closed/480VAC

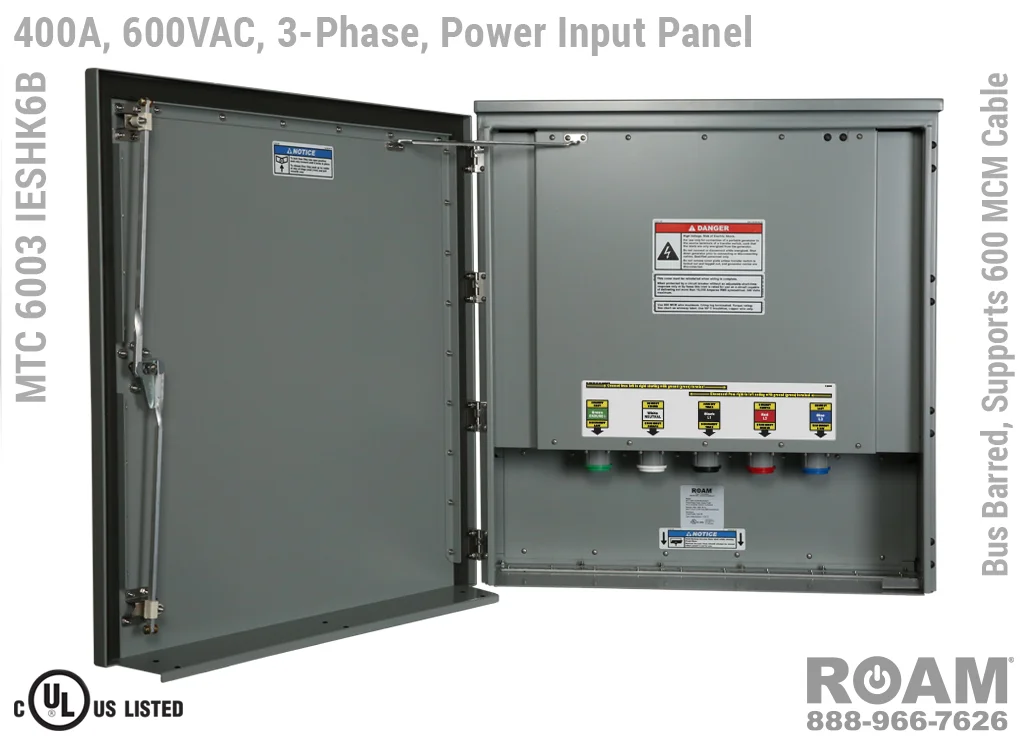

MTC 6003 IESHK6B - 400A/600VAC
Three-Phase - Power Input Panel - Open/600VAC

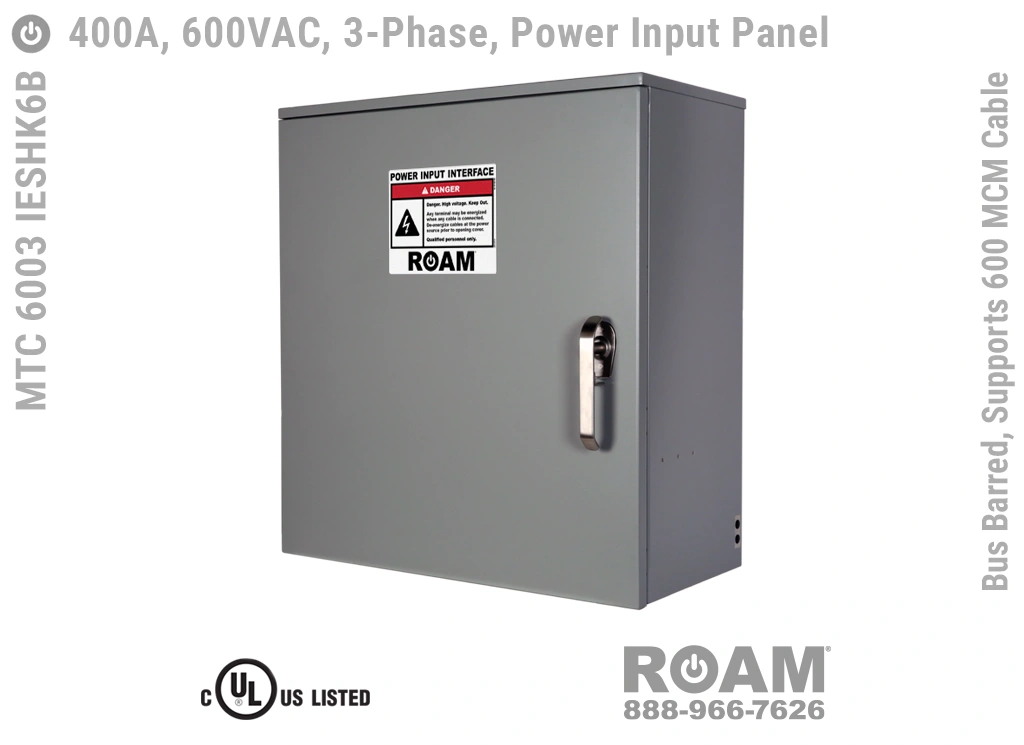

MTC 6003 IESHK6B - 400A/600VAC
Three-Phase - Power Input Panel - ClosedK6B - 400A/600VAC
Canadian Color Coding Available
Any Roam panels normally color coded (for Cam-Locks, Spring Caps, and Labels) as L1=Black, L2=Red, & L3=Blue, are also available in the typical Canadian color coding format of L1=Red, L2=Black, & L3=Blue. If you need to order a unit with the Canadian color scheme, just add a "-CAN" to the end of the Model Number. If you are connecting the Power Input Panel to a power source that uses the US color coding (L1 = Black, L2 = Red, L3 = Blue), then you may want the standard US color system (so long as local electrical codes allow).
No Neutral Options Available
Roam's 400 Amp-600MCM Power Input Panels (Boxes) can also be ordered with no neutral connection for site and generator configurations designed for just Ground, L1, L2, and L3 cables. The "No Neutral" versions of these panels are also UL Listed and cUL Listed (Canada). To order a panel without a neutral connector just add a "-NN" to the end of the Model Number. The "No Neutral" panels use only four Cam-Lok connectors.

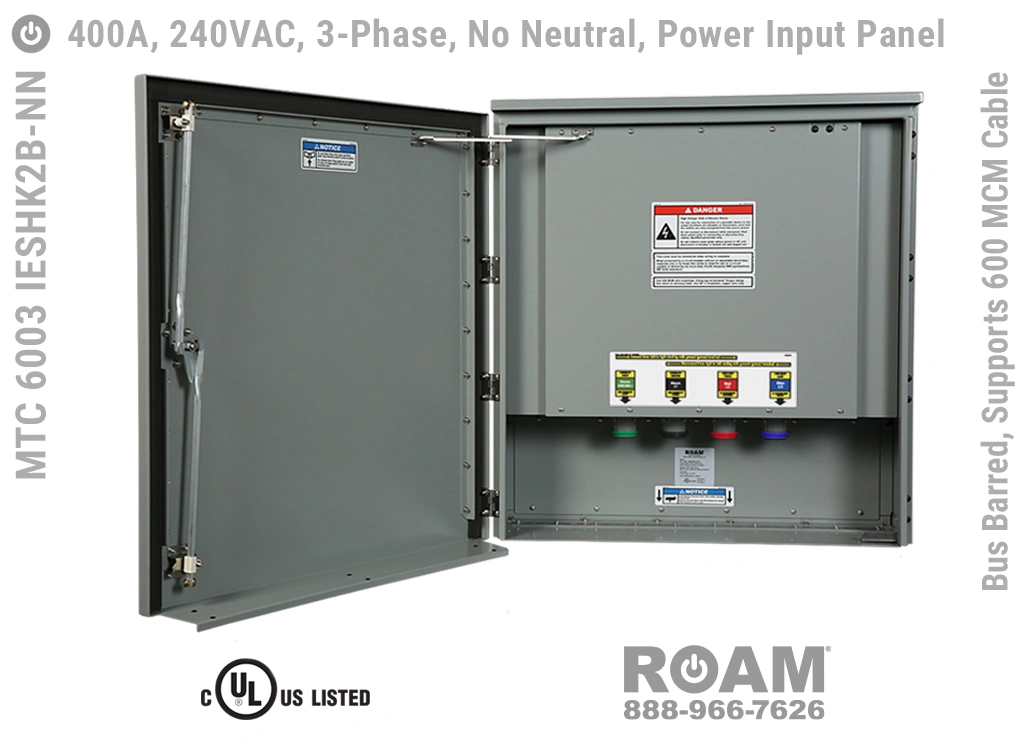

MTC 6003 IESHK2B-NN - 400A/240VAC
Three-Phase - Power Input Panel
No Neutral - Open/240VAC

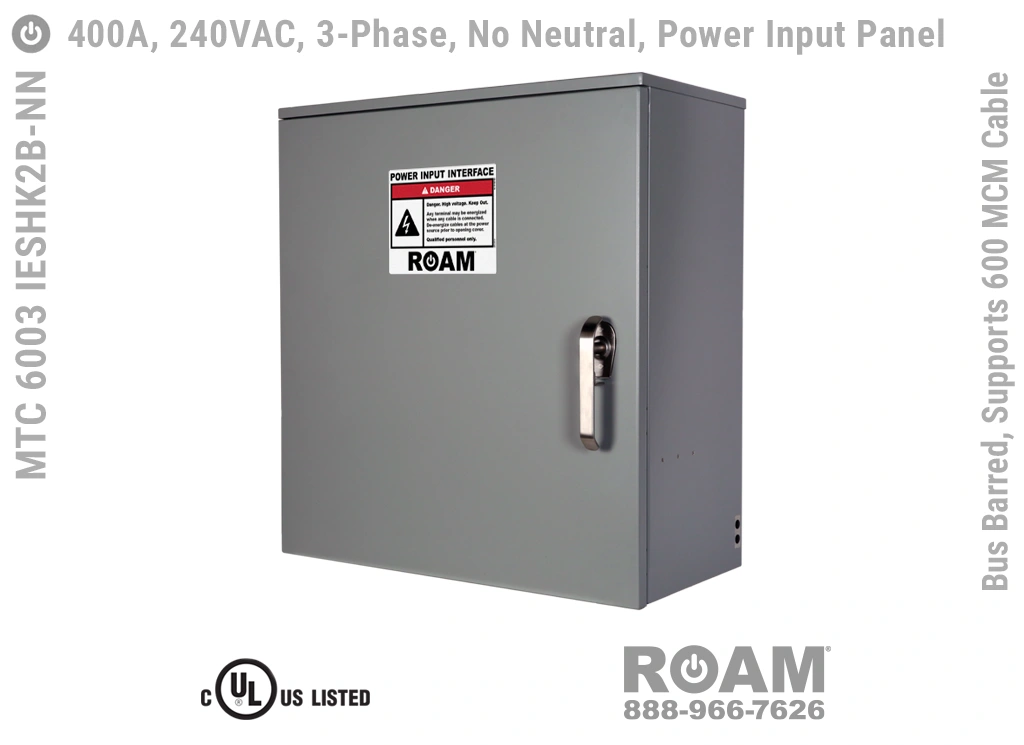

MTC 6003 IESHK2B-NN - 400A/240VAC
Three-Phase - Power Input Panel
No Neutral - ClosedK2B-NN - 400A/240VAC

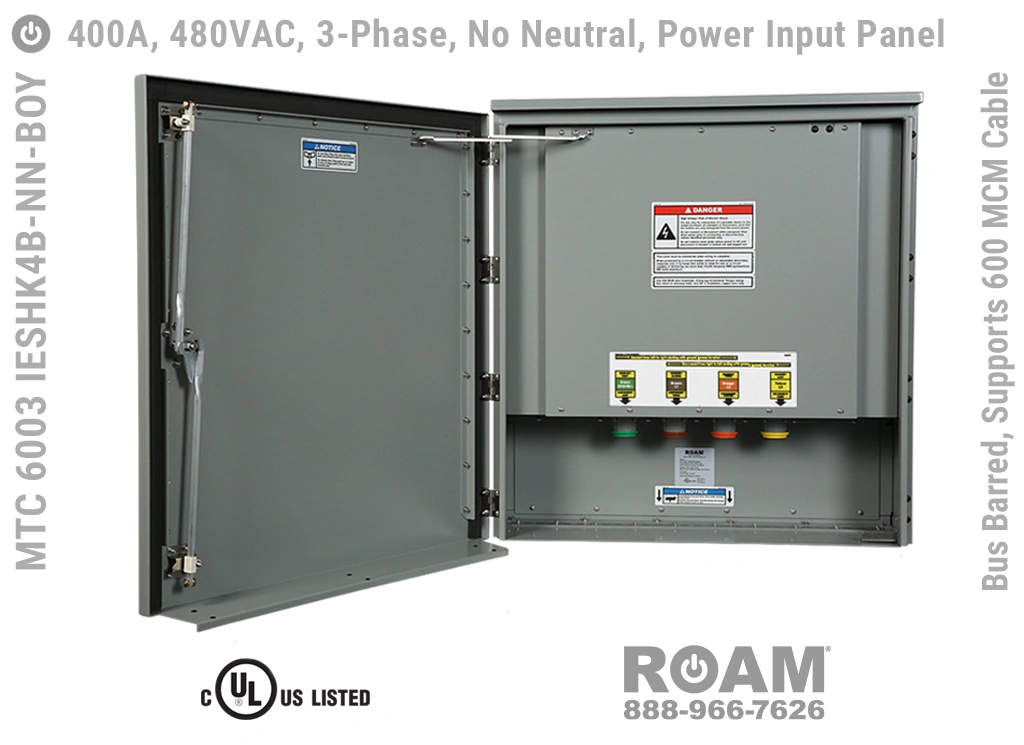

MTC 6003 IESHK4B-NN-BOY - 400A/480VAC
Three-Phase - Power Input Panel
No Neutral - Open/480VAC

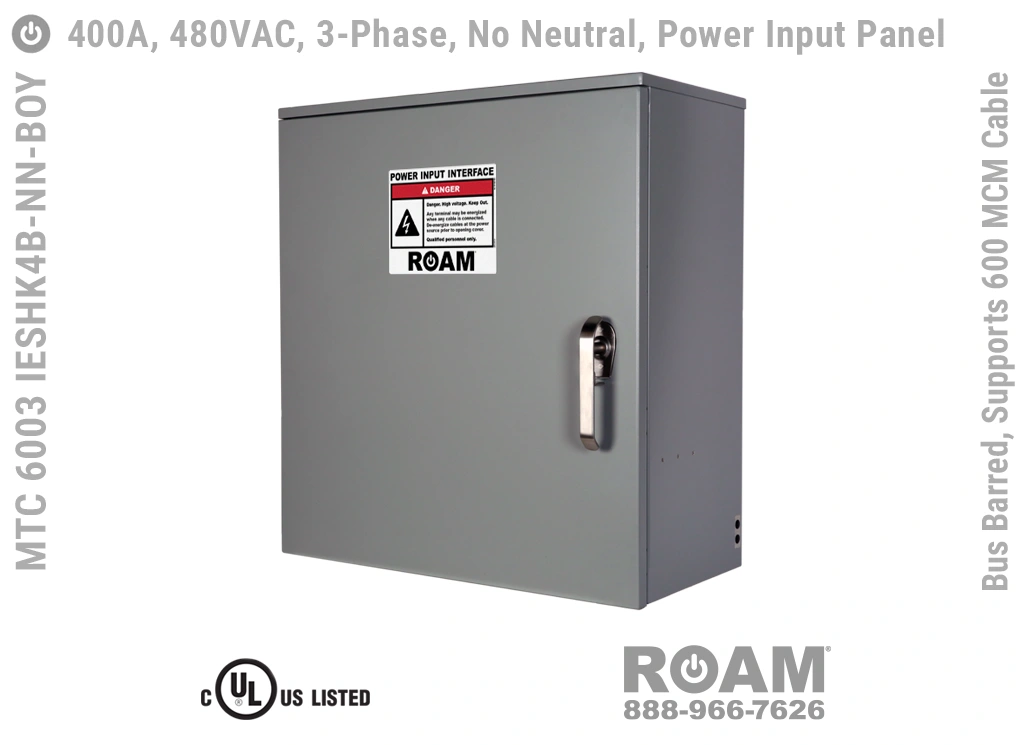

MTC 6003 IESHK4B-NN-BOY - 400A/480VAC
Three-Phase - Power Input Panel
No Neutral - ClosedIESHK4B-NN-BOY - 400A/480VAC

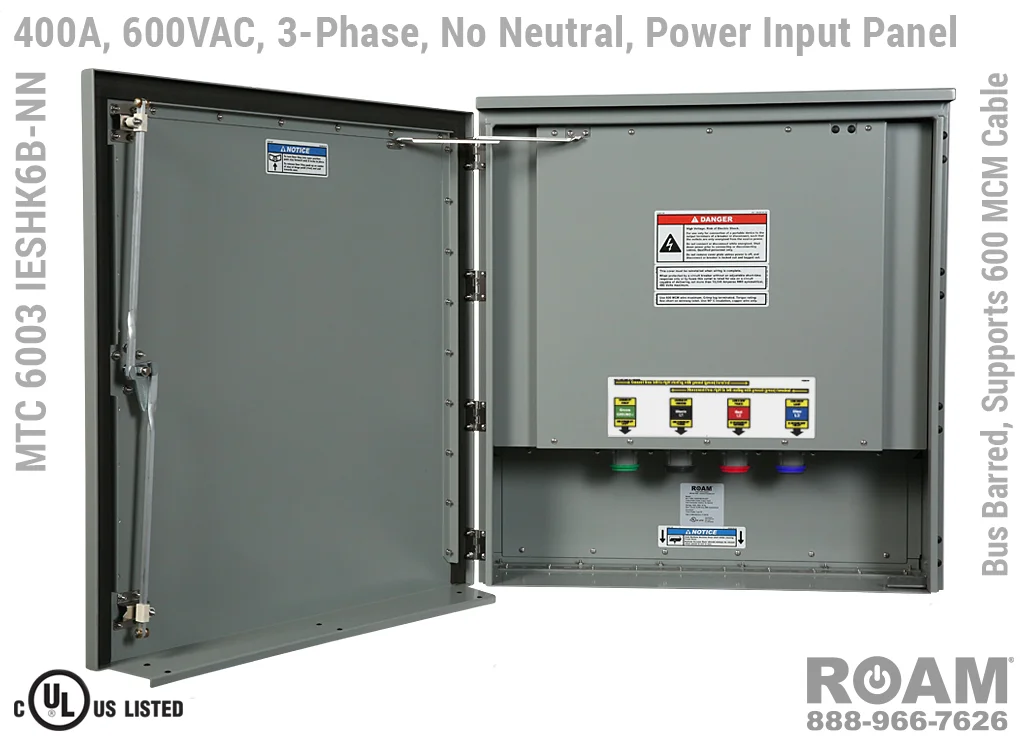

MTC 6003 IESHK6B-NN - 400A/600VAC
Three-Phase - Power Input Panel
No Neutral - Open/600VAC

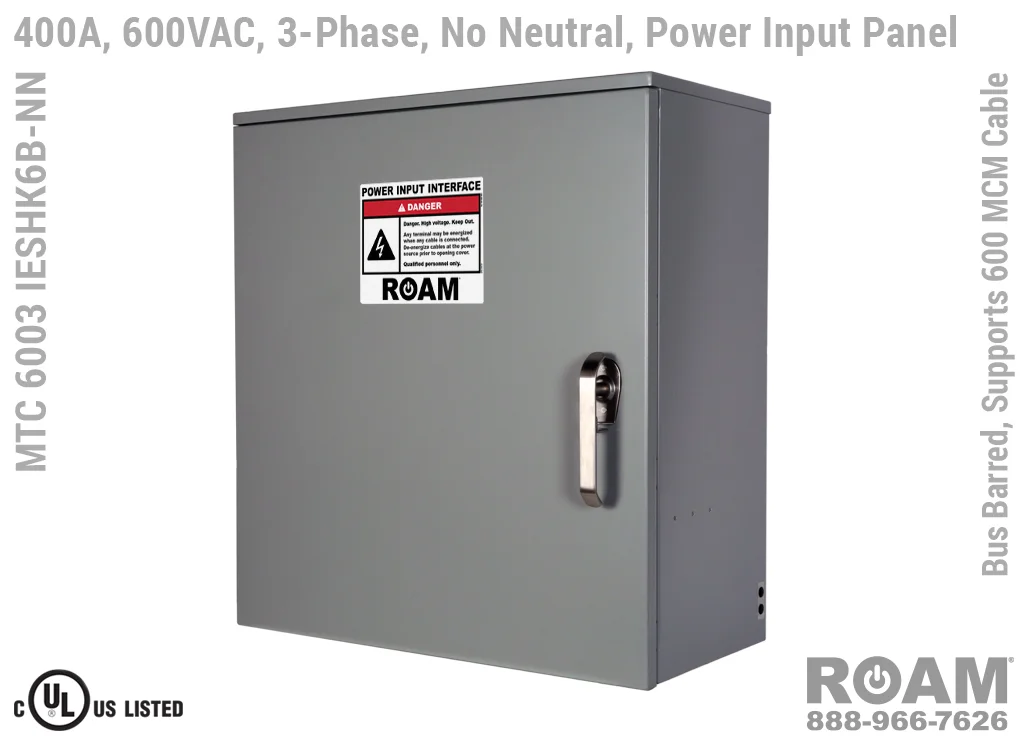

MTC 6003 IESHK6B-NN - 400A/600VAC
Three-Phase - Power Input Panel
No Neutral - ClosedK6B-NN - 400A/600VAC
Model Numbers & Options
| Base Model Number | Up to 240VAC | Up to 480VAC | Up to 600VAC | No Neutral Connector |
|---|---|---|---|---|
| MTC 6003 IESHKvB | MTC 6003 IESHK2B | MTC 6003 IESHK4B-BOY | MTC 6003 IESHK6B | MTC 6003 IESHKvB-NN |
The "v" in the part number represents a code of either 2 (for up to 240 VAC panels), 4 (for up to 480 VAC panels), or 6 (for up to 600 VAC panels).
