Generator Interface Panel - Tap Box - Connector
Panel - Gen Box - Docking Station
Single-Phase 200A Compact
MTC 6001 ECKv
Roam's MTC® 6001 ECKv series ("v" = Voltage Code) of Generator Interface Panels (Generator Connection Boxes) provide a compact, rugged, and cost-effective exterior connection point for emergency power. These Generator Interface Panels use E1016 (J-Series/16 Series) Male Cam-Lok* brand connectors and are part of Roam's UL Listed (US & Canada) series of single-phase generator interface panels.
The standard in safety and outdoor reliability, Roam's line of Generator Interface Boxes makes connecting a portable generator to your site fast, easy, and most importantly—safe. Generator Interface Panels like those made by Roam are also known in various industries under other names such as Generator Connector Panels, Tap Boxes, Inlet Boxes, Docking Stations, Generator Plugs, Gen Boxes, and Generator Quick Connects. Roam uses genuine Cooper Crouse-Hinds Cam-Lok brand connectors. Similar compatible connectors are sometimes referred to as "Cam-Lock" connectors by their manufacturers, distributors, and/or users.
- Single-phase power, at up to 200A
- 240 VAC, 480 VAC, & 600 VAC rated panels
- Spot-welded Galvanneal steel construction
- Custom labels & configurations available
- Brown-Orange-Yellow connectors at 480VAC
- Corrosion-resistant powder coating
- UV-resistant four color labels
- Built to NEMA 3R standard
- Internal and external grounding studs
- Four Male E1016 Cam-Lok connectors
MTC 6001 ECK2 - 200A/240VAC - Single-Phase
Compact Generator Interface Panel - Open/240VAC - Single-Phase

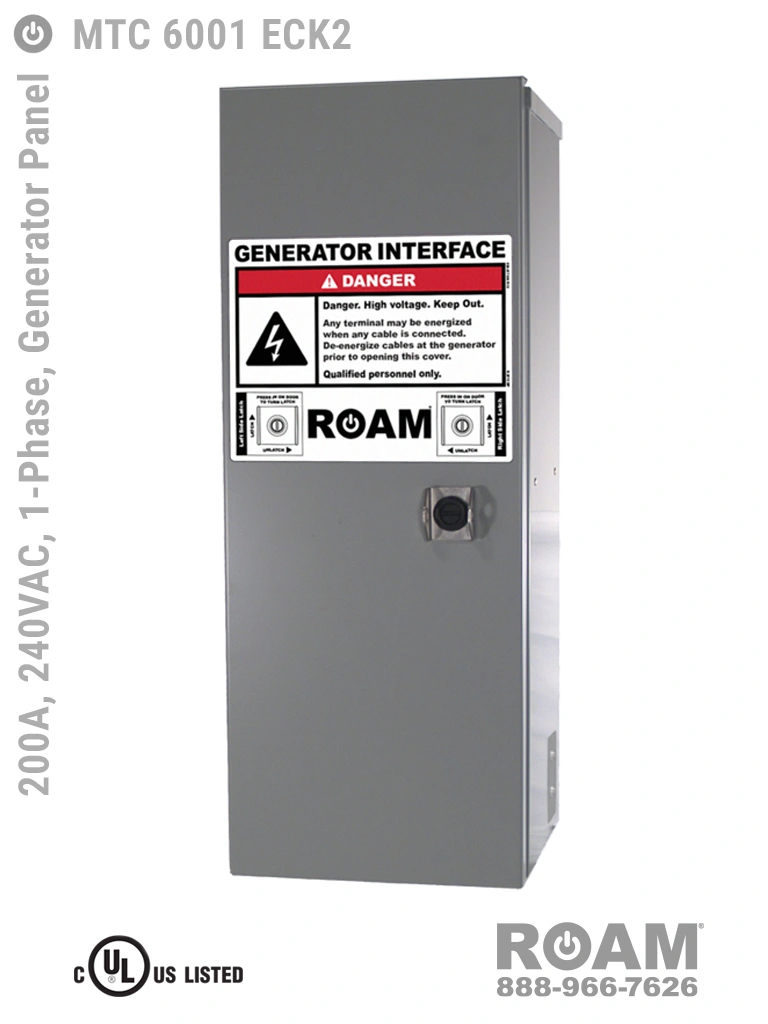

MTC 6001 ECK2 - 200A/240VAC - Single-Phase
Compact Generator Interface Panel - Closed/240VAC - Single-Phase
Connections
Roam's MTC 6001 ECKv 200 Amp Generator Interface Boxes accept either #2 to 2/0 or 2/0 to 4/0 cables via Cam-Lock plugs on the generator cable side, and from 1/0 to 4/0 cables on the internal wireway side.
Voltages up to 600VAC
Roam offers MTC 6001 ECKv Generator Panels in models that support up to 240 VAC (120v, 208v, 230v, 240v)—MTC 6001 ECK2, up to 480 VAC (277v, 330v, 440v, 480v)—MTC 6001 ECK4-BOY, and up to 600 VAC (575v, 577v, 600v)—MTC 6001 ECK6, which are UL Listed and cUL Listed (Canada) at those voltage levels. Brown-Orange color coding (for labels, Cam-Locks, & Cam-Lock spring caps) is normally used for most 480 VAC applications.

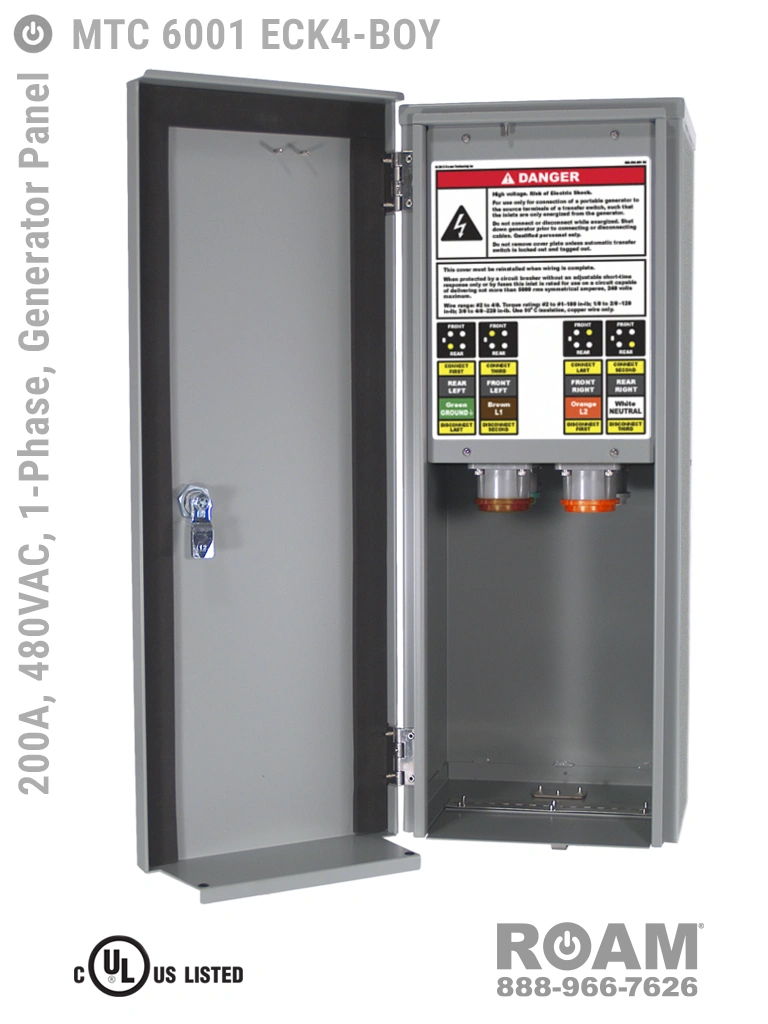

MTC 6001 ECK4-BOY - 200A/480VAC
Single-Phase - Compact Generator Panel - Open/480VAC

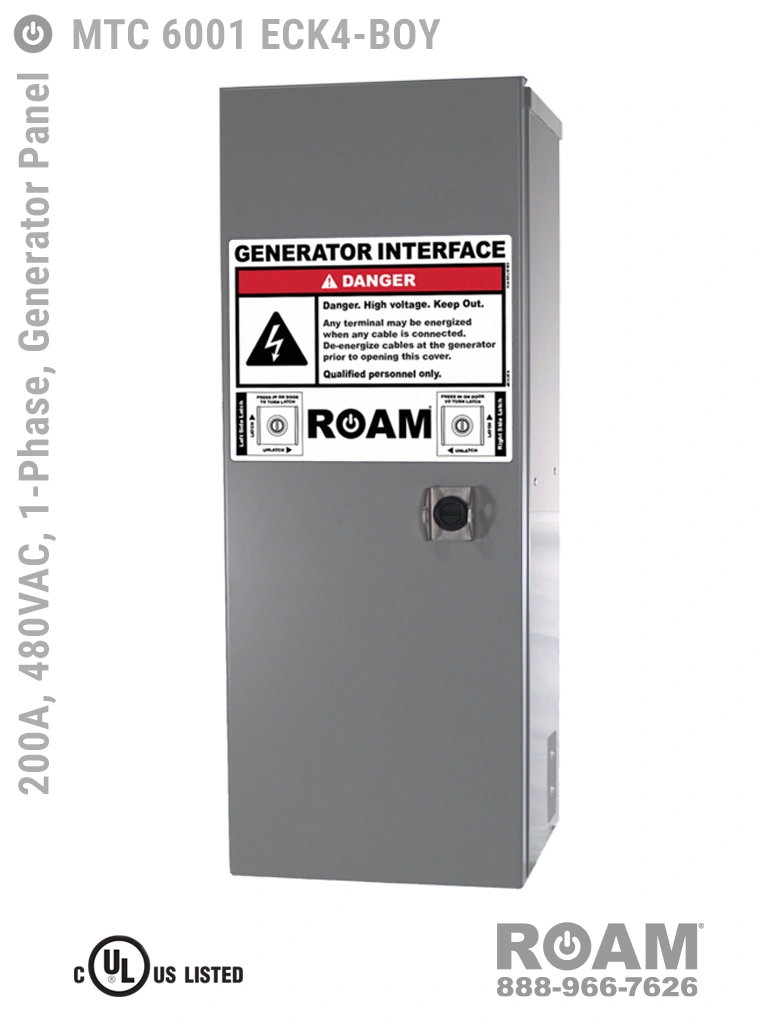

MTC 6001 ECK4-BOY - 200A/480VAC
Single-Phase - Compact Generator Panel - Closed/480VAC
MTC 6001 ECK6 - 200A/600VAC - Single-Phase
Compact Generator Interface Panel - Open
MTC 6001 ECK6 - 200A/600VAC - Single-Phase
Compact Generator Interface Panel - Open
Canadian Color Coding Available
Any Roam panels with power connectors normally color coded (for Cam-Locks, Spring Caps, and Labels) as L1=Black, L2=Red, & L3=Blue, are also available in the typical Canadian color coding format of L1=Red, L2=Black, & L3=Blue. If you need to order a unit with the Canadian color scheme, just add a "-CAN" to the end of the Model Number. If the loads you are connecting the Power Output Panel to use the US color coding (L1=Black, L2=Red, L3=Blue), then you may want the standard US color system (so long as local electrical codes allow).
Spring Caps
These units are also available without Cam-Lock Spring Caps. Roam strongly recommends the Spring Cap version to help protect the Cam-Lock connectors' brass conductors from insects, spider webs, dust, and corrosion. Omit the "K" from the model number to order a version of this panel without Spring Caps.
Model Numbers & Options
| Base Model Number | Up to 240VAC | Up to 480VAC | Up to 600VAC | No Spring Caps |
|---|---|---|---|---|
| MTC 6001 ECKv | MTC 6001 ECK2 | MTC 6001 ECK4-BOY | MTC 6001 ECK6 | MTC 6001 ECv |
The "v" in the part number represents a code of either 2 (for up to 240 VAC panels), 4 (for up to 480 VAC panels), or 6 (for up to 600 VAC panels).
