Generator Interface Panel
Single-Phase 150A Mini Cam-Lock
MTC 6001 ESMKv
Roam's MTC® 6001 ESMKv Mini Cam-Lock series ("v" = Voltage Code) of Generator Interface Panels (Generator Connection Boxes) provide a rugged and cost-effective exterior connection point for emergency power.
Roam's line of Mini Cam-Lock panels offer a lower power alternative to our standard 16 Series Cam-Lock panels. The Mini Cam-Lock panels support up to 150A using Marinco* brand 15 Series Cam-Lock connectors. Note that Mini Cam-Lock connectors are smaller than and not compatible with 16 Series standard Cam-Lock connectors. Applications include industrial use, entertainment, and concession trailers. These panels are made with Spring Cap covers for the connectors (to protect against dust or insects).
Roam's Mini Cam-Lock based line of Generator Interface Panels makes connecting a portable generator to your site fast, easy, and most importantly—safe. Generator Interface Panels like those made by Roam are also known in various industries under other names such as Generator Connector Panels, Tap Boxes, Inlet Boxes, Docking Stations, Generator Plugs, Gen Boxes, and Generator Quick Connects.
- Corrosion-resistant powder coating
- Built to NEMA 3R standard
- UV-resistant four color labels
- Internal and external ground points
- Marinco Cam-Lock 15-series connectors
- Color coded spring caps for cam-locks
- Brown-Orange-Yellow connectors for 480VAC
- 150A rated Male Mini Cam-Lock connectors
- Single-phase power, up to 150A
- 240 VAC, 480 VAC, & 600 VAC Rated Panels
- Spot-welded Galvanneal steel construction
- Wireway receptacles accept #8–#2 AWG wire
- Connector plugs accept #8–#2 AWG wire
- Custom labels & configurations available

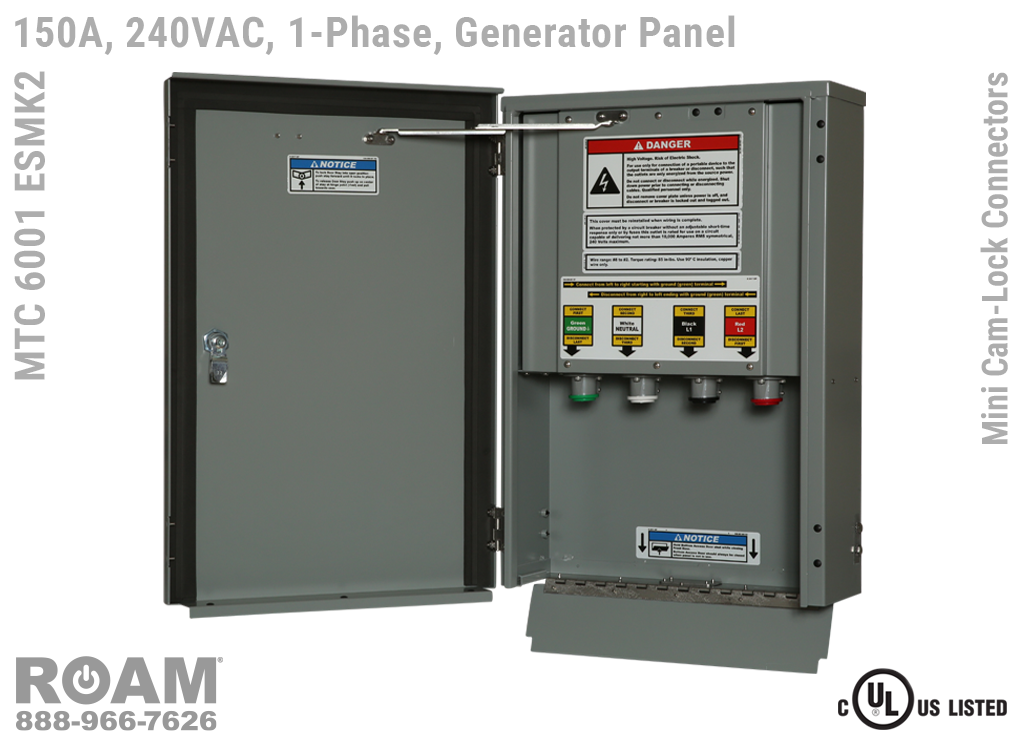

MTC 6001 ESMK2 - 150A/240VAC
Single-Phase - Generator Interface Panel - Open/240VAC
MTC 6001 ESMK2 - 150A/240VAC
Single-Phase - Generator Interface Panel - Closed - 150A/240VAC
Connections
Roam's MTC 6001 ESMKv Generator Boxes accept from #8 to #2 (AWG) cables via Mini Cam-Lock plugs on the generator cable side, and from #8 to #2 (AWG) cables on the internal wireway side.
Voltages up to 600VAC
Roam offers the MTC 6001 ESMKv Generator Panel in models that support up to 240 VAC (120v, 208v, 230v, 240v)—MTC 6001 ESMK2, up to 480 VAC (277v, 330v, 440v, 480v)—MTC 6001 ESMK4-BOY, and up to 600 VAC (575v, 577v, 600v)—MTC 6001 ESMK6. Brown-Orange-Yellow color coding (for labels, Mini Cam-Locks, & Spring Caps) is normally used for most 480 VAC applications.

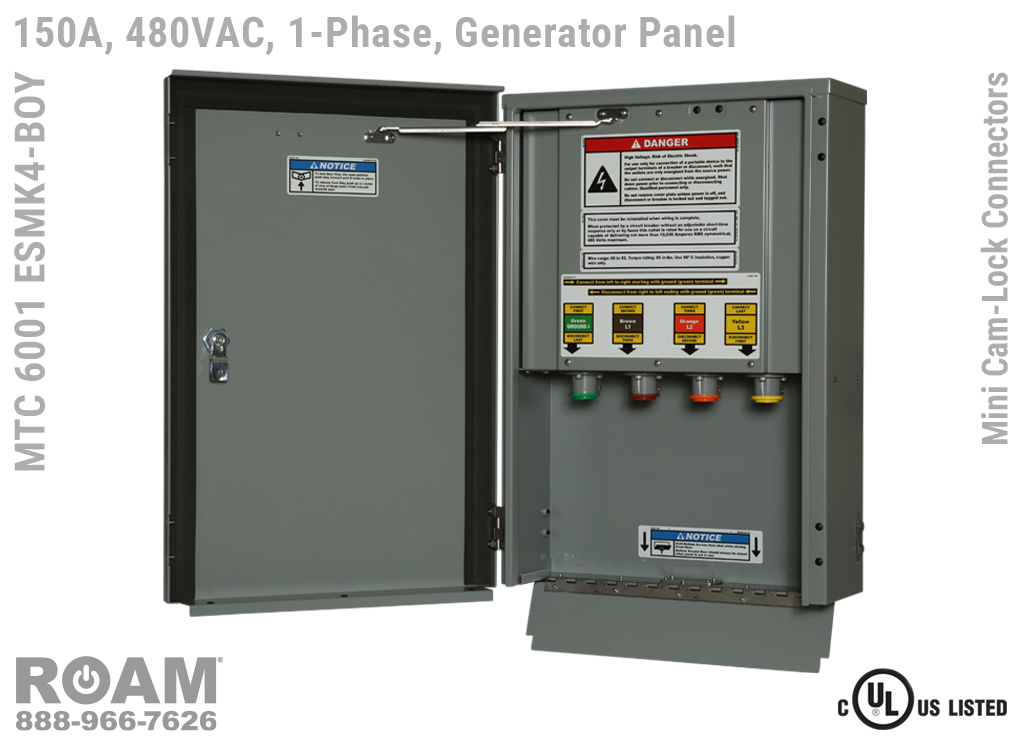

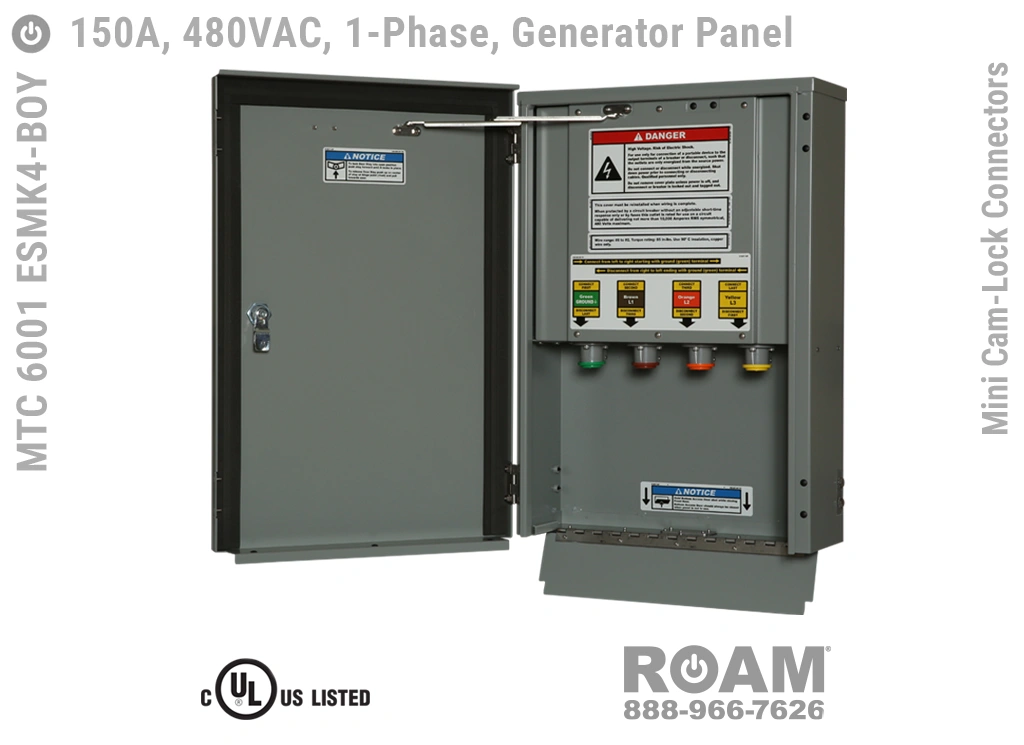

MTC 6001 ESMK4-BOY - 150A/480VAC
Single-Phase - Generator Interface Panel - Open/480VAC

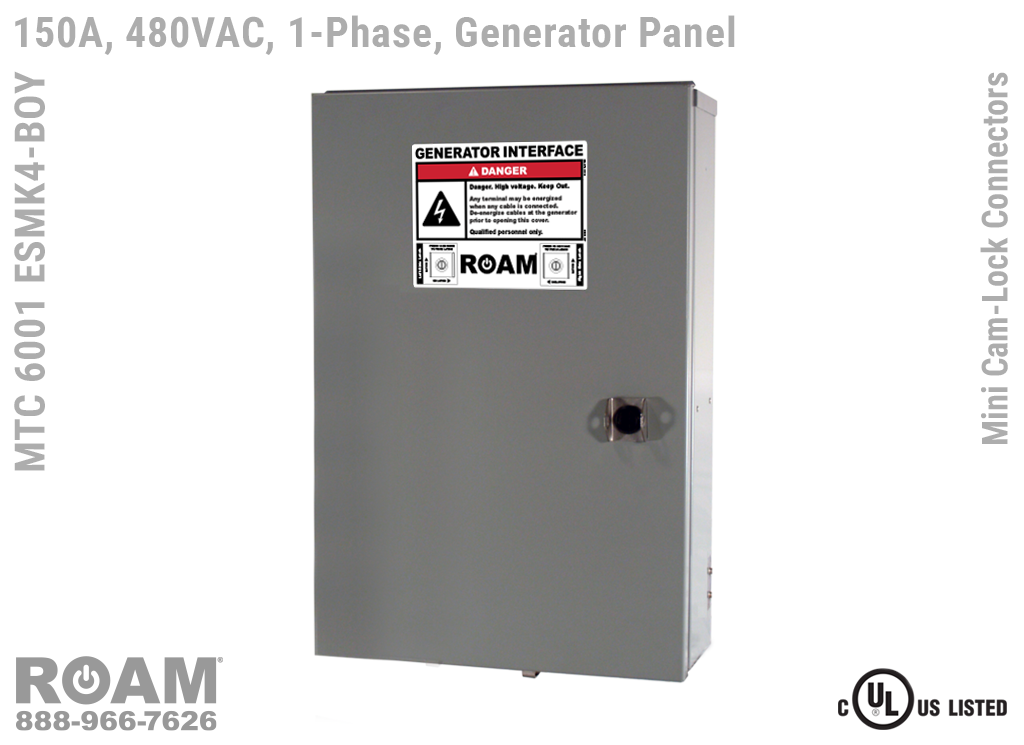

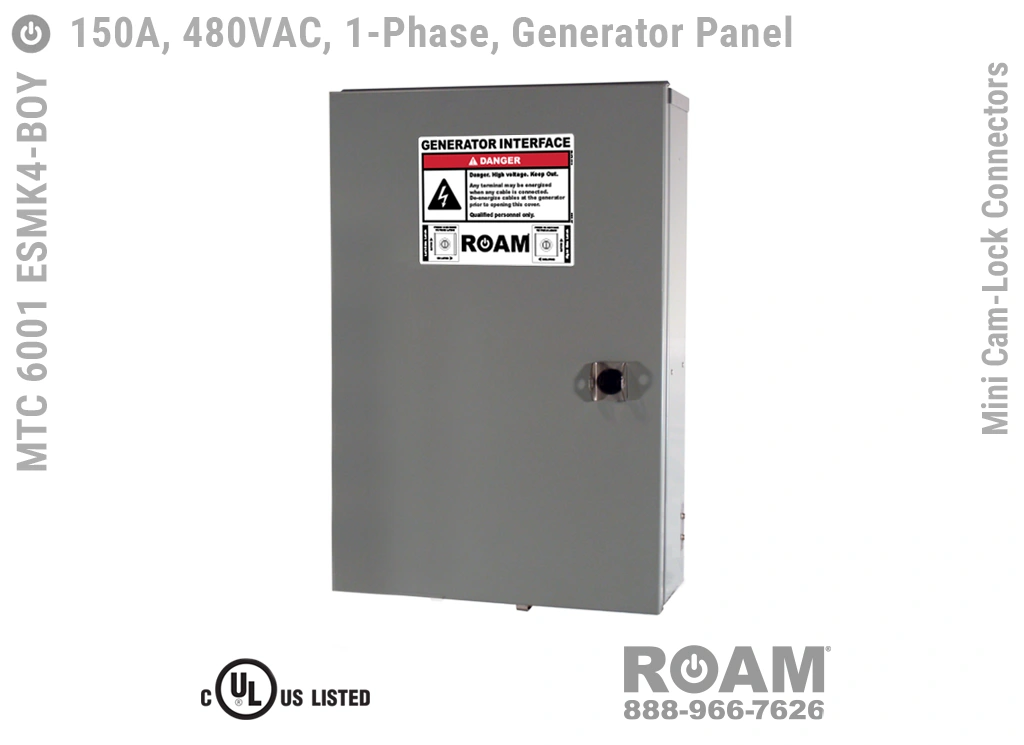

MTC 6001 ESMK4-BOY - 150A/480VAC
Single-Phase - Generator Interface Panel - Closed/480VAC

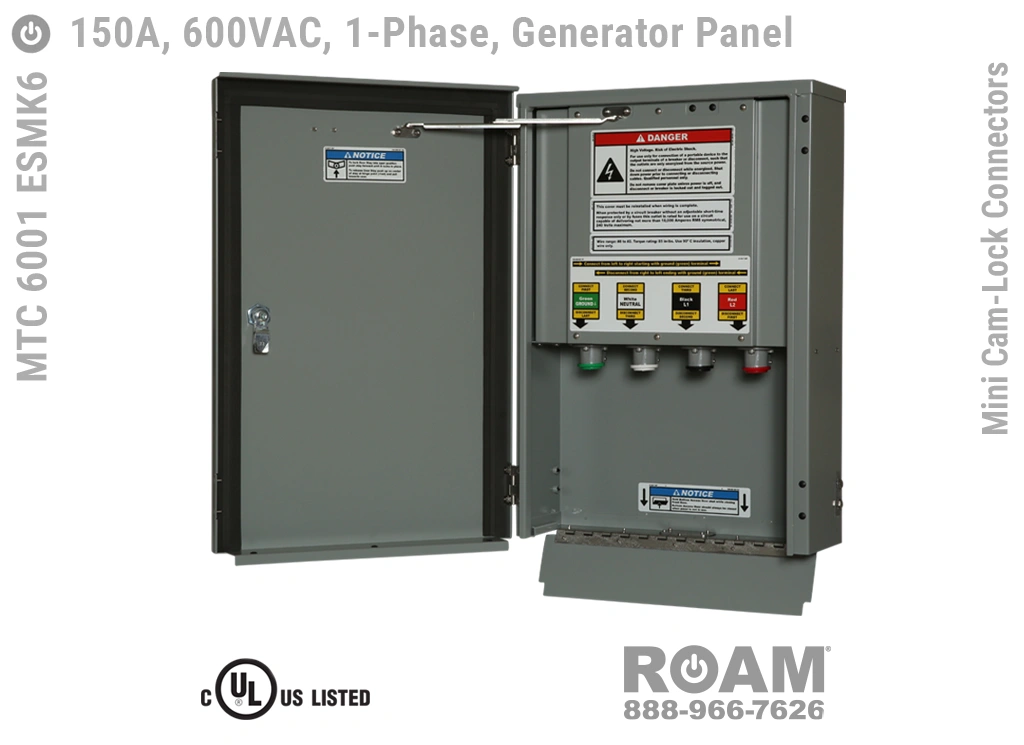

MTC 6001 ESMK6 - 150A/600VAC
Single-Phase - Generator Interface Panel - Open/600VAC

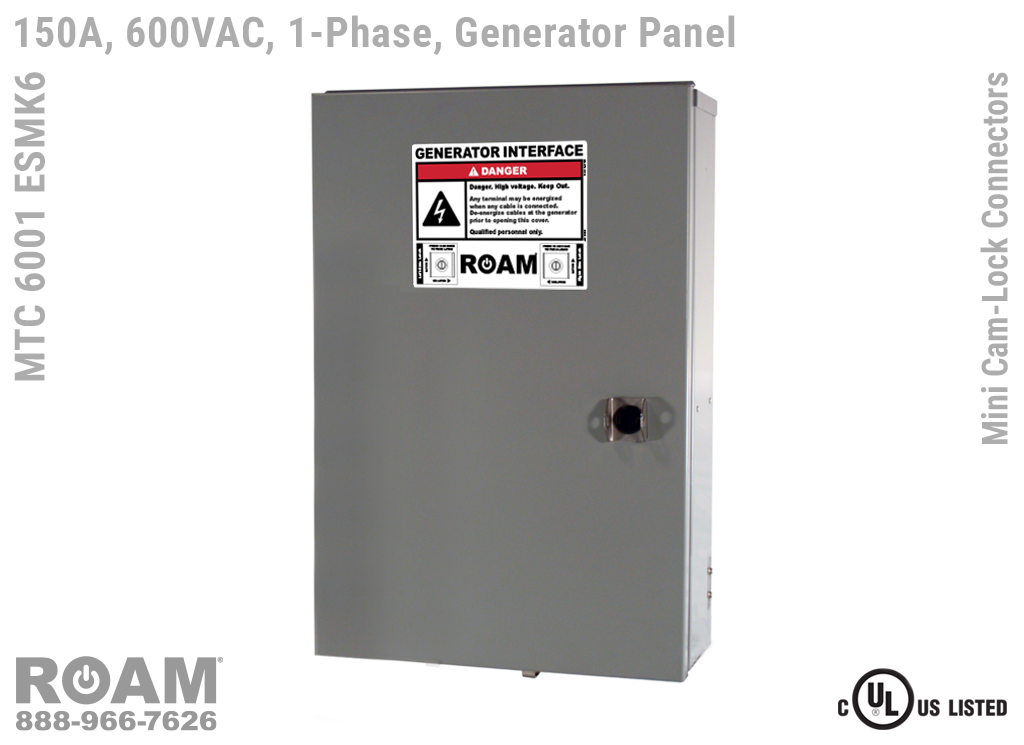

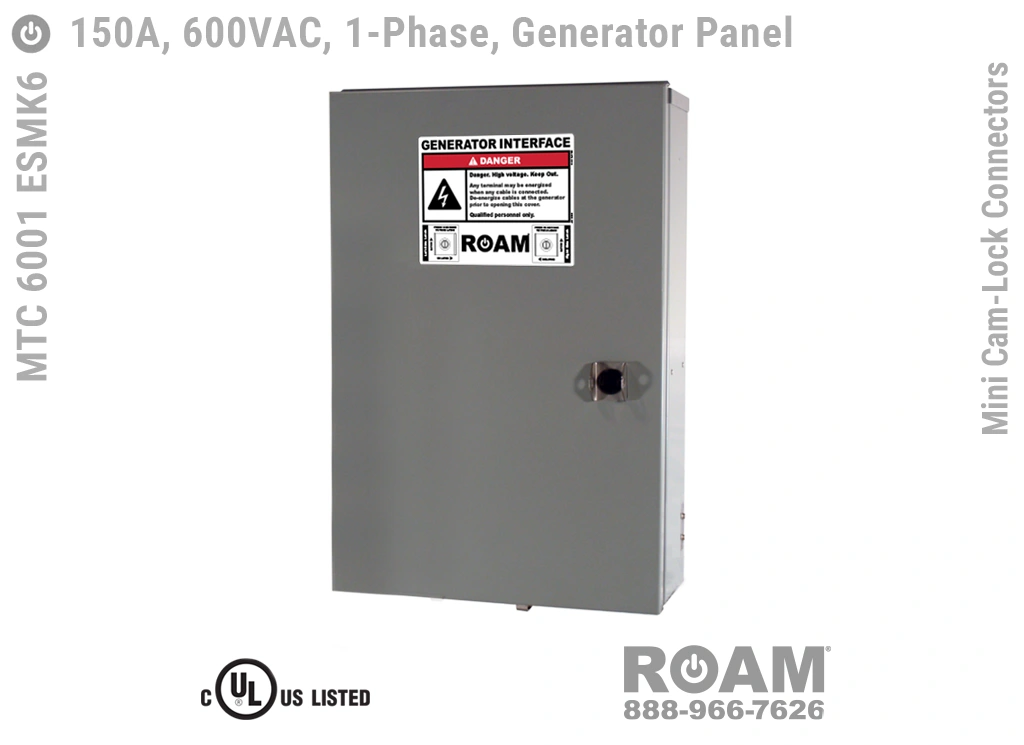

MTC 6001 ESMK6 - 150A/600VAC
Single-Phase - Generator Interface Panel - Closed/600VAC
Canadian Color Coding Available
Any Roam panels with power connectors normally color coded (for Mini Cam-Locks, Spring Caps, and Labels) as L1=Black & L2=Red are also available in the typical Canadian color coding format of L1=Red & L2=Black. If you need to order a unit with the Canadian color scheme, just add a "-CAN" to the end of the Model Number. If the Generator you are connecting to uses the US color coding (L1=Black, L2=Red), then you may want the standard US color system (so long as local electrical codes allow).
No Neutral Options Available
Roam's 150A Mini Cam-Lock Generator Interface Panels (Boxes) can also be ordered with no neutral connection for sites and generator configurations designed for just Ground, L1, L2, and L3 cables. To order a panel without a neutral connector just add a "-NN" to the end of the Model Number. The "No Neutral" panels use only three Mini Cam-Lock connectors.

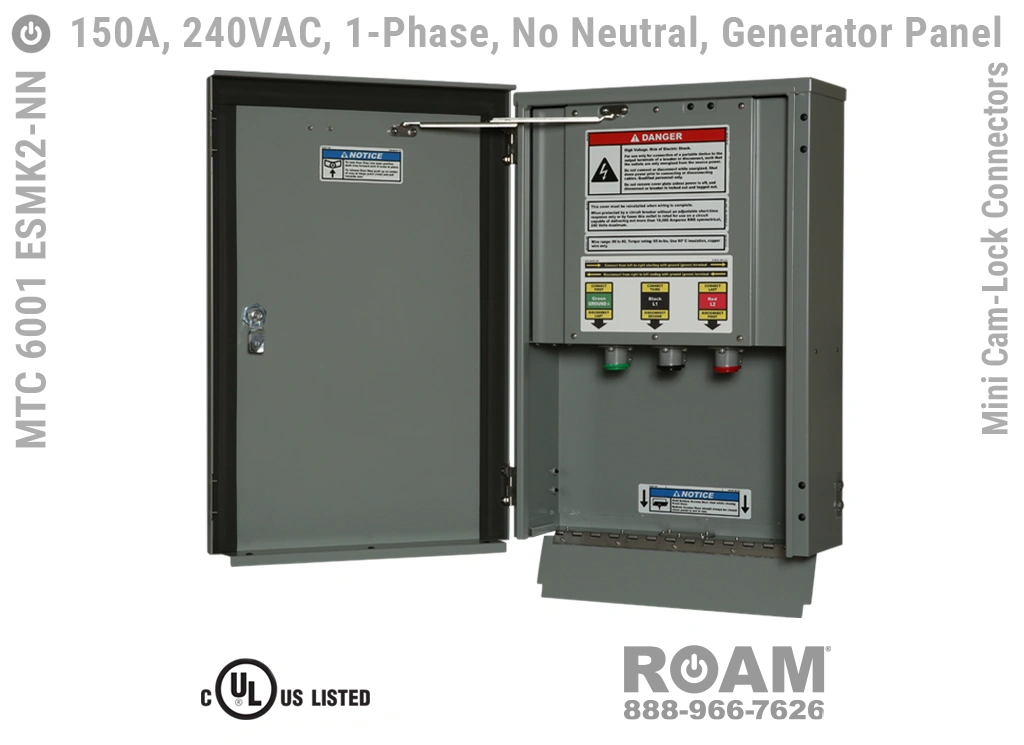

MTC 6001 ESMK2-NN - 150A/240VAC
Single-Phase - Generator Interface Panel No Neutral - Open/240VAC

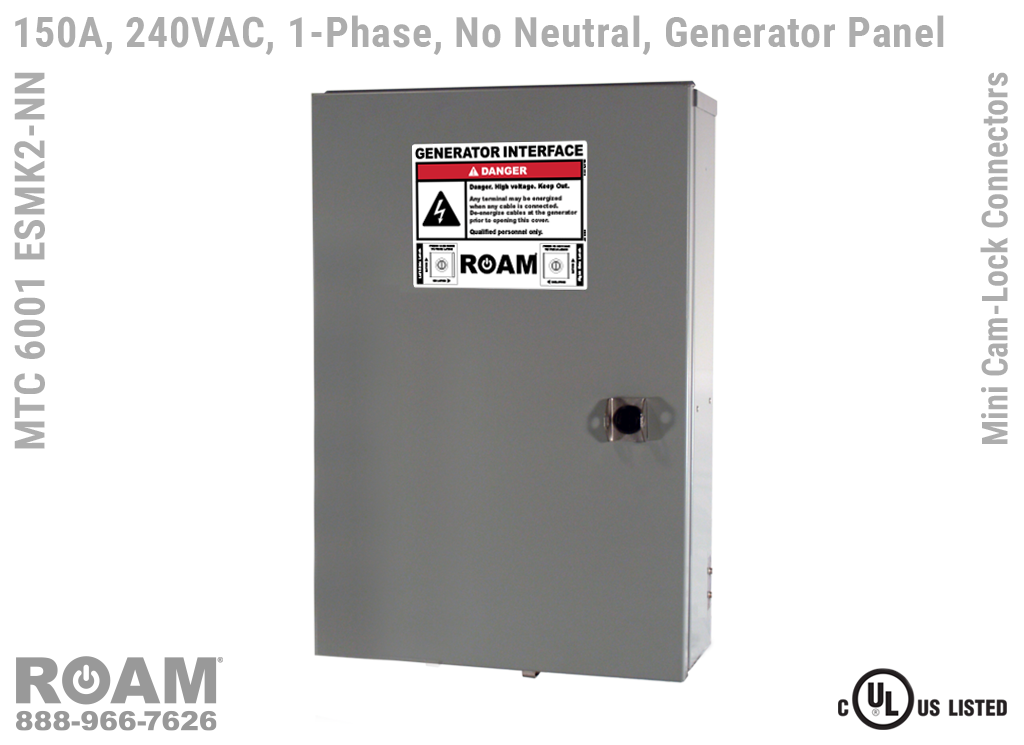

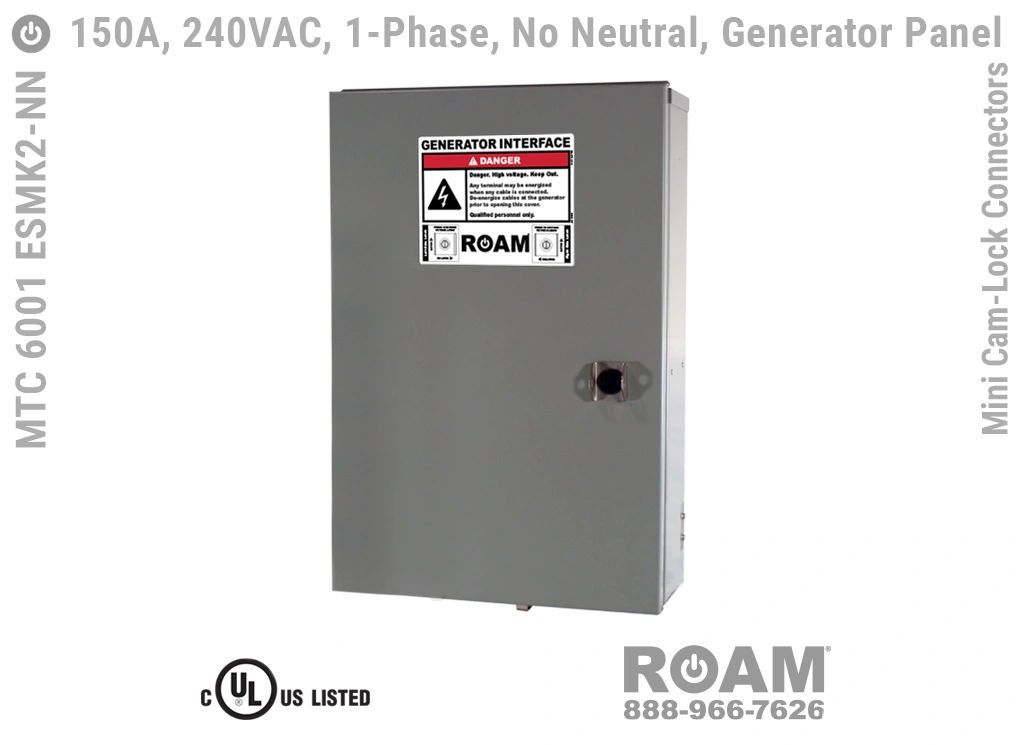

MTC 6001 ESMK2-NN - 150A/240VAC
Single-Phase - Generator Interface Panel No Neutral - Closed/240VAC
MTC 6001 ESMK4-NN-BOY - 150A/480VAC
Single-Phase - Generator Interface Panel No Neutral - Open/480VAC

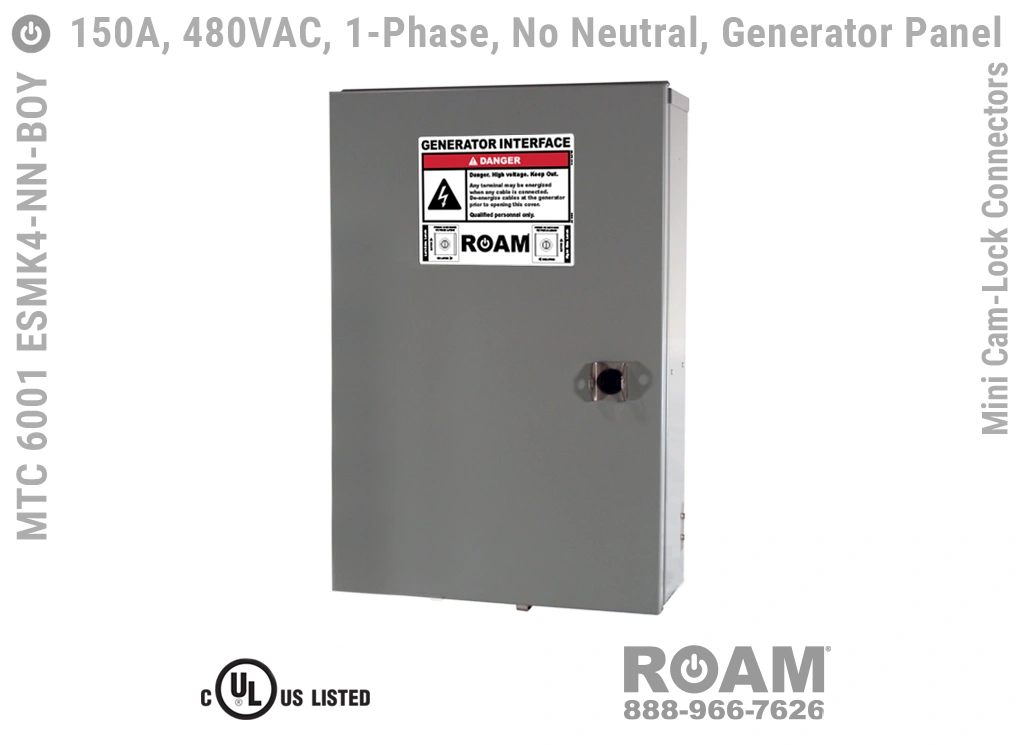

MTC 6001 ESMK4-NN-BOY - 150A/480VAC
Single-Phase - Generator Interface Panel No Neutral - Closed/480VAC
MTC 6001 ESMK6-NN - 150A/600VAC
Single-Phase - Generator Interface Panel No Neutral - Open/600VAC
MTC 6001 ESMK6-NN - 150A/600VAC
Single-Phase - Generator Interface Panel No Neutral - Closed/600VAC
Model Numbers & Options
| Base Model Number | Up to 240VAC | Up to 480VAC | Up to 600VAC | No Neutral Connector |
|---|---|---|---|---|
| MTC 6001 ESMKv | MTC 6001 ESMK2 | MTC 6001 ESMK4-BOY | MTC 6001 ESMK6 | MTC 6001 ESHKvB-NN |
The "v" in the part number represents a code of either 2 (for up to 240 VAC panels), 4 (for up to 480 VAC panels), or 6 (for up to 600 VAC panels).
