Generator Interface Panel - Tap Box - Inlet Box -
Docking Station - Generator Plug
Single-Phase 600A
MTC 6001 ES6KvB
Supporting up to 600 Amps, Roam's MTC® 6001 ES6KvB series ("v" = Voltage Code) of Generator Interface Panels (Generator Connection Boxes) provide a rugged and cost-effective exterior connection point for high-capacity emergency power. Roam's 600A Generator Panels use E1016 (J-Series/16 Series) male Cam-Lok* brand connectors in two rows of 400A (max) connectors bus-barred together, allowing the panel to support up to 600A.
The standard in safety and outdoor reliability, Roam's line of Generator Interface Panels makes connecting a portable generator to your site fast, easy, and most importantly—safe. The MTC 6001 ES6KvB line is part of Roam's UL Listed (US & Canada) series of single-phase Generator Interface Panels. Generator Interface Panels like those made by Roam are also known in various industries under other names such as Generator Connector Panels, Tap Boxes, Inlet Boxes, Docking Stations, Generator Plugs, Gen Boxes, and Generator Quick Connects. Roam uses genuine Cooper Crouse-Hinds Cam-Lok brand connectors. Similar compatible connectors are sometimes referred to as "Cam-Lock" connectors by their manufacturers, distributors, and/or users.
- Corrosion-resistant powder coating
- UV-resistant four color labels
- Built to NEMA 3R standard
- Internal and external grounding studs
- Eight Male E1016 Cam-Lok connectors
- Single-phase power at up to 600 Amps
- 240 VAC, 480 VAC, & 600 VAC rated panels
- Spot-welded Aluminum construction
- Custom labels & configurations available
- Brown-Orange-Yellow connectors at 480VAC
Roam's 600A Generator Panels are functionally identical to our 800A (max) Generator Panels (docking stations). The maximum amperage that the Series-16 Cam-Lock connectors can handle is 400A each, so any panel that needs to support over 400A and up to 800A must use two rows of Cam-Lock connectors that are bus-barred together.

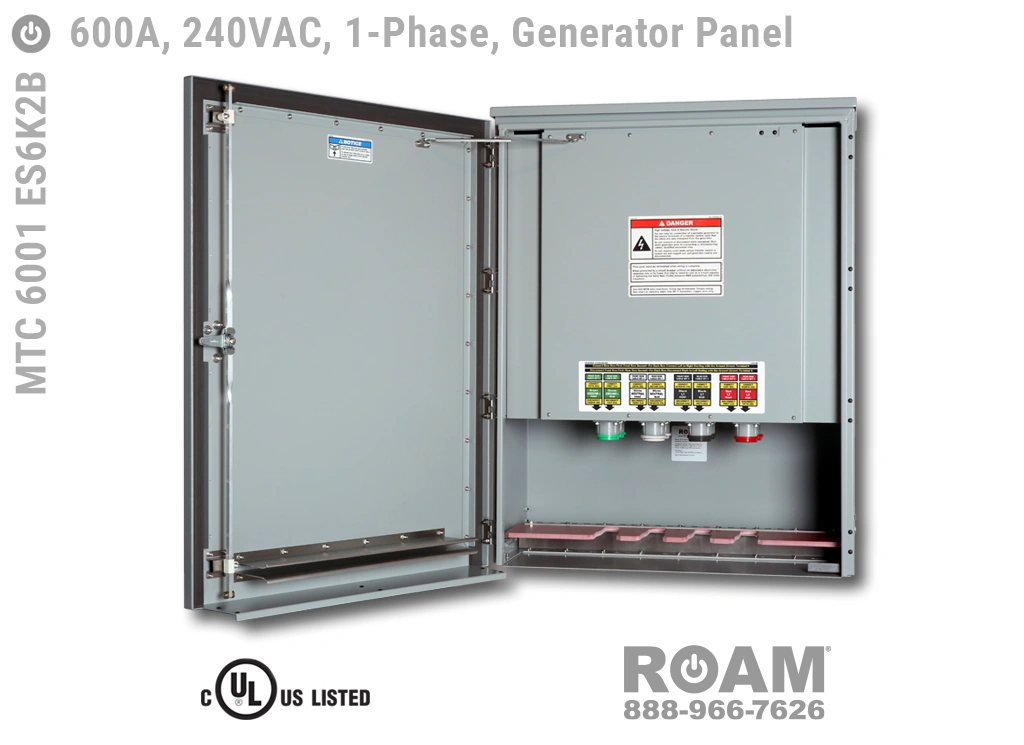

MTC 6001 ES6K2B - 600A/240VAC
Single-Phase - Generator Interface Panel - Open/240VAC

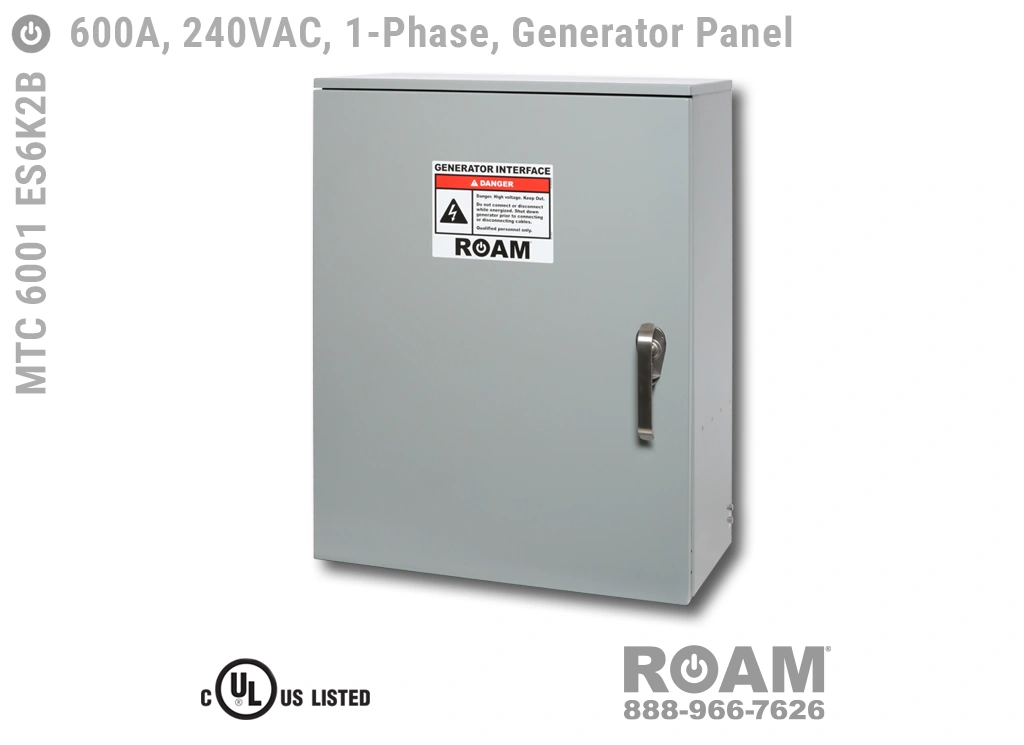

MTC 6001 ES6K2B - 600A/240VAC
Single-Phase- Generator Interface Panel - Closed/240VAC
Connections
Roam's MTC 6001 ES6KvB 600 Amp Generator Interface Boxes accept either #2 to 2/0 or 2/0 to 4/0 cables via Cam-Lock plugs on the generator cable side, and from #2 AWG–600MCM cables on the internal wireway side. The wireway connection supports up to dual 600MCM cables (via bolted on lugs) on internal bus bars.
Voltages up to 600VAC
Roam offers MTC 6001 ES6KvB Generator Panels in models that support up to 240 VAC (120v, 208v, 230v, 240v), up to 480 VAC (277v, 330v, 440v, 480v), and up to 600 VAC (575v, 577v, 600v), which are UL Listed and cUL Listed (Canada) at those voltage levels. Brown-Orange color coding (for labels, Cam-Locks, & Cam-Lock spring caps) is normally used for most 480 VAC applications.
MTC 6001 ES6K4B-BOY - 600A/480VAC
Single-Phase - Generator Interface Panel - Open/480VAC
MTC 6001 ES6K4B-BOY - 600A/480VAC
Single-Phase - Generator Interface Panel - Closed/480VAC
MTC 6001 ES6K6B - 600A/600VAC
Single-Phase - Generator Interface Panel - Open/600VAC
MTC 6001 ES6K6B - 600A/600VAC
Single-Phase - Generator Interface Panel - Closed/600VAC
Synchronization
For all 600A Generator Interface Panels, it is vital that the panel be fed only from a single generator or power source or from multiple generators or power sources that are synchronized. Do not connect multiple power sources or generators to this panel unless all power inputs have been synchronized. Failure to properly synchronize (phase match and voltage match) inputs from multiple power sources or generators can cause short circuits, severe equipment damage, and potential injury to operators. Additionally, all power input cables should be of same cable type, conductor material, gauge, and length.
Canadian Color Coding Available
Any Roam panels with power connectors normally color coded (for Cam-Locks, Spring Caps, and Labels) as L1=Black & L2=Red are also available in the typical Canadian color coding format of L1=Red & L2=Black. If you need to order a unit with the Canadian color scheme, just add a "-CAN" to the end of the Model Number. If the Generator you are connecting to uses the US color coding (L1=Black & L2=Red), then you may want the standard US color system (so long as local electrical codes allow).
Model Numbers & Options
| Base Model Number | Up to 240VAC | Up to 480VAC | Up to 600VAC |
|---|---|---|---|
| MTC 6001 ES6KvB | MTC 6001 ES6K2B | MTC 6001 ES6K4B-BOY | MTC 6001 ES6K6B |
The "v" in the part number represents a code of either 2 (for up to 240 VAC panels), 4 (for up to 480 VAC panels), or 6 (for up to 600 VAC panels).
